Research Article - (2022) Volume 8, Issue 6
Received: 15-Feb-2022, Manuscript No. JPNP-22-51932;
Editor assigned: 17-Feb-2022, Pre QC No. P-51932;
Reviewed: 02-Jun-2022, QC No. Q-51932;
Revised: 08-Jun-2022, Manuscript No. R-51932;
, DOI: DOI: 10.37421/2472-0992.2022.8.192.
Citation: Daf Abhijit N, Waikar Shekhar B, Madavi Akshay N, and Kapse Akash S, et al. "Comparison of Different Solvent and Extraction Methods for Isolation of Flavonoids Compound from Leaves of Clerodendrum infortunatum Linn." J Pharmacogn Nat Prod 8 (2022): 192.
Copyright: © 2022 Daf Abhijit N, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Clerodendrum infortunatum Linn leaves of the Verbinaceae Family and contains biologically active substances. The aim of the current research was to determine best methods for extraction in different solvents and evaluation of different extraction methods for best of flavonoid compounds. Clerodendrum infortunatum Linn leaves was extracted with four different solvents. Extraction of the plant material with various organic solvents in increasing order of polarity with the help of Petroleum ether (60-80°), Chloroform, Acetone and Methanol solvents to the find out the percentage (%) yield of all the extracts. Thin layer chromatography study of each extract to know the number of components present in them. Extraction of flavonoid rich fraction with the help of (80%) ethanol (N.R Fransworth) by using different extraction methods then comparative study of percentage yield of total flavonoids like Maceration, Hot Continuous Percolation (Soxhlet Extraction), Microwave assisted Extraction and Ultrasonic Extraction (Extraction using Ultrasonic waves) and collect the fraction using column chromatography and Identification of isolated compound with the help of UV spectroscopy either Quercetin, Rutin or any other suitable flavonoid marker.
Flavonoids • Clerodendrum infortunatum Linn leaves phytochemical screening • Different extraction methods • Different solvents TLC Rf value • Column chromatography • UV • Fraction
Several species of leaves of Clerodendrum infortunatum Linn have been traditionally used over the centuries and their antioxidant and hepatoprotective potential has already been demonstrated. Various parts of the plant are used by the tribes in colic, scorpion stings, snakebites, tumors and some skin diseases. The leaves are slightly bitter but heal inflammation, skin diseases and are good against smallpox, treatment of bronchitis, asthma, febrile diseases of inflammation of the blood, burning sensation and epilepsy. The plant contains triterpenes, steroids and mainly it contains flavonoids. Antioxidant, antimalarial, antimicrobial, deworming and analgesic activity Clerodendrum infortunatum Linn well known for its traditional uses in various parts of the world, is commonly known as saraswaty leaf and other names are Bhant in Hindi, Bhagri in Sanskrit, Khanduchakka in Marathi and Bhatghetu in Bangali (Figure 1).
Secies: C. infortunatum
Botanical name: Clerodendrum infortunatum
Synonyms: Clerodendrum infortunatum, Clerodendrumviscosum, Clerodendrumcalycinum
Vernacular name: Khanduchakka, Bharangi, Bhagri
Microwave-Assisted Extraction (MAE): MAE may be a technique that mixes microwave and ancient solvent extraction. In MAE, the extraction happens as a result of changes within the cell structure caused by magnetic waves. It is been projected that the extraction acceleration determined in MAE could also be because of the warmth and mass transfer gradients operating in the same direction. Exploitation microwaves for heating the solvents and plant tissues will increase the mechanics of extraction and various blessings are so obtained over traditional solvent extraction, together with shorter in the extraction of assorted compounds from natural sources.
Soxhlet extraction: Completely different elements those are utilized in soxhlet extraction are thimble, water cooling system, and reservoir, bypass tube, siphon tube and condenser is seen in fig. we'll take needed quantity of solid material of leaves confine thimble that is loaded into soxhlet vessel having flask containing extractor solvent. Solvent vapor moves up to the column and floods into the chamber housing the thimble of solid. Some part of non-volatile compounds dissolves in solvent. Method repeats repeatedly till we tend to get desired focused compounds in flask. Method has been done at boiling temperature of solvent and extraction has been drained 100 ml plant product for 3.5 hours.
Ultrasonic extraction method: Sonication is that the act of applying sound energy to agitate particles during a sample, for varied functions comparable to the extraction of multiple compounds from plants. In audible frequencies is (>20 kHz) are typically used, resulting in the method additionally being called ultrasonication or vibration extraction method
Maceration: During this process solid ingredients are placed in closed instrumentation with full of the solvent and allowed to face for minimum of 3 days (3-7) days with frequent agitation, till soluble matter is dissolved. The mixture is then strained through sieves/nets the also the combined liquids clarified.
Methods for isolation of chemical constituents
Preparative Thin Layer Chromatography (TLC)
Preparative TLC has been established to accelerate the separation of complex mixtures. In analytical TLC, microgram amounts of mixtures are separated. In this method, a thicker layer of absorbent is used for larger amounts. The separate bands of compounds are scraped off the plate and subjected to solvent extraction followed by the use of modern spectroscopic methods for structure-determination.
This method is used to purify or isolate plant constituents from extracts of compounds partially purified using a column. This is the most preferred method for quantitative/preparative separation. Components measuring from a few micrograms to a few kilograms can be separated. In this method, the stationary phase, a solid adsorbent, is placed in a vertical glass column and a mobile phase, a liquid, is added at the top and flows through the column by gravity or external pressure.
Methods for characterization of chemical constituents
Ultraviolet Visible Spectroscopy (VS)
This is concerned with the study of absorption of UV and visible radiation. Radiation wavelength ranges from 200 nm-400 nm for UV light and 400 nm-800 nm for visible light. Thus, for colorless compounds, measurements are made in the range 200 nm-400 nm and for colored compounds; the range is 200-800 nm. In UV as well as visible spectroscopy, only valence electrons absorb the energy which causes the promotion of electrons of the sample molecule from ground state to higher energy states. This is called as transition due to which characteristic spectrum is obtained according to the structure of the compound.
The plant specimen was dried, identified and authenticated at Department of Botany, RashtrasantTukadojiMaharaj Nagpur University (RTMNU), and Nagpur with a specimen number 10156. The leaves of Clerodendrum infortunatum Linn were collected in the month of august from Department of Botany,RTMNU Nagpur.
Drying and size reduction
The leaves of Clerodendrucm infortunum Linn were shade dried under normal environmental conditions and then subjected for size reduction to coarse powder in a mechanical grinder
Defatting of plant material
The plant material was shade dried for 10 days and powdered. The powdered plant material (250 g) was transferred into soxhlet extractor for extraction and defatted with the petroleum ether (60-80°C) (700 ml) at temperature of 60°C on heating mantle. The extraction was continued until the solvent in the thimble becomes clear indicating completion of extraction. The defatting was completed after 25-30 cycles. The defatted material was allowed for extraction.
Extraction from the defatted material
The material was extracted with reflux condenser by 80% ethanol. It was carried out for about 12 hours for complete extraction at 90°C on a heating mantle. The solvent was distilled off and the extract was poured in petriplates and concentrated at room temperature. The extract was obtained as a greenish black gummy residue and was stored for further processing.
Phytochemical and Preliminary screening
Morphological characterization of extract: The extract was studied for morphological and physical characteristics. The morphological characteristic such as odor, color and taste of the leaves extract were examined.
Solubility: Solubility of the ethanolic extract was determined by dissolving about 5-10 mg of extract in 5 ml of various solvents like chloroform, water, pet ether, methanol, ethanol, acetone
Preliminary test of hydroalcoholic extract: In these the various preliminary test were done to detect the presence of chemical constituent like alkaloids, flavonoids, carbohydrates, tannins, glycosides etc.
Tests for flavonoids
Shinoda test: 1 g of the powder was extracted with 10 ml of ethanol (95%) for 15 min. on a boiling water bath and filtered. To the filtrate a small piece of magnesium ribbon and 3 drops of hydrochloric acid was added, formation of red colour indicated the presence of flavonoids.
Lead acetate test: The test solution was mixed with lead acetate solution and observed for the formation of yellow precipitate that indicated the presence of flavonoids.
Alkali test: Test solution was treated with increasing amounts of NaOH; and observed for the formation of yellow coloration which decolorizes after addition of acid that indicated the presence of flavonoids.
Test for carbohydrates
Molisch’s test: Molisch’s reagent (1 ml) was mixed with 2 ml of test solution, and then 1 ml of concentrated sulphuric acid was added. It was observed for the red to violet ring at the junction of the two liquids that indicated the presence of carbohydrates.
Test for glycosides
A small amount of extract was taken in 1 ml water. Then few drops of aqueous sodium hydroxide were added. Yellow precipitate was considered as an indication for the presence of glycosides in a boiling water bath. Brick red precipitate was considered as an indication for the presence of glycosides.
Test for proteins
Million’s test: 3 ml of extract was mixed with 5 ml Million’s reagent. White ppt. warm ppt turns brick red or the precipitate dissolves giving red colored solution.
Test for tannins
Potassium dichromate test: 5 ml of the extract was placed in a test tube and then 1 ml of 10% potassium dichromate solution was added. Red precipitate was considered as an indication for the presence of tannins and phenolic compounds.
Test for steroids
Salkowski reaction: 2 ml of the extract was placed in a test tube and then 2 ml of chloroform and 2 ml of concentrated sulphuric acid were added to it and shaken well. Chloroform layer appearing red and acid layer showing greenish yellow fluorescence was considered as an indication for the presence of steroids.
Test for saponins
Foam test: 1 ml of the extract was placed in a graduated cylinder and was diluted to 20 ml with distilled water and shaken gently for 15 min, persistent foam was considered as an indication for the presence of saponin glycosides.
Thin Layer Chromatography Profile
Sample preparation for TLC
Few ml of extract was dissolved in 10 ml of methanol, and sonicated as required for spotting in TLC.
Preparation of plate
The absorbent used for TLC was silica GF254 (Merck Chemical, Mumbai). About 25 g of silica gel GF254 was taken in glass mortar and about 35 ml of distilled water was added to it. The mixture was stirred using glass pestle until it became homogenous. Then an additional 15 ml of distilled water was added to it with stirring. This suspension was transferred to 150 ml glass flask fitted with plastic stopper and was shaken vigorously for about 2 minutes. The suspension was then spread immediately on TLC plate by pouring technique.
Drying and storage of plates
The freshly coated plates were air dried until the transparency of the layer was disappeared. The plates were then dried in hot air oven and were activated at 110-120°C for 30 minutes prior to sample application. This removed the water and frees active sites of absorbents which should react with the sample to be separated. Thus, better resolution and separation can be achieved.
Application of sample
Capillaries were used to apply the samples to the TLC plates. Samples were applied in the form of spots.
Chromatographic chamber, condition of saturation and development of TLC
Chromatographic rectangular glass chamber (16.5 cm × 29.5 cm) was used in the experiment. To avoid insufficient chamber saturation and the undesirable edge effect, smooth sheet of filter paper approximately of 15 × 40 cm size was placed in the developing chamber in U shaped and allowed to be soaked in the developing solvent. After being thus moistened, paper was then pressed against the wall of chamber so that adhered to the walls. The experiment was carried out at room temperature in diffused daylight.
Development of solvent system
The extract was tried with several developing solvent systems 47, but satisfactory resolution was obtained in a mixture of Toluene: Methanol for alkaloids and Ethyl acetate: Glacial acetic acid: Formic acid: Water (100:11:11:26) for flavonoids. Various solvent systems which were tried for the separation are enumerated in (Table 1).
Various solvent system trial for flavonoids
|Ethyl acetate: benzene: methanol: water||75:5:10:10||Tailing effects|
|Ethyl acetate: Methanol: Distilled water: Formic acid||50:10:10:10||Spots were separated|
|Toluene: Ethyl acetate: Formic acid||2.111227||Spots were separated|
|Toluene: Chloroform: Acetone||1.684433||Partial separation|
|N-Butanol: Acetic acid:water||0.334838||Partial separation|
|Ethyl acetate: Acetone: Formic acid Water||50:30:10:10||Tailing effects|
|Chloroform: Toulene: Ether: Acetic acid||60:60:15:5||Spots were separated|
|Toluene: Ethyl acetate: Diethylamine||7.5:1.5:1||No separation|
Determination of Rf alue
The Rf value of the isolated spots were determined by using the following formula.
Rf value=Distance travelled by band/Distance travelled by solvent
Identification of spots
The spots were examined under UV light (254 nm) and in the iodine chamber for the identification of the separated spots.
Extraction of the plant material with various organic solvents
Extraction of the plant material with various organic solvents in increasing order of polarity with the help of following solvents to find out the percentage (%) yield of all the extracts.
• Petroleum ether (60o-80o)
• The TLC study of each extract to know the number of components present in them.
Chemical evaluation of plant material
Preliminary phytochemical screening of each extracts to know the various classes of chemical constituents present in them.
• In this process, the whole or coarsely powdered crude drug was placed in a stoppered container with the solvent and allowed to stand at room temperature for a period of at least 13 days with frequent agitation until the soluble matter has dissolved.
• The mixture then was strained, the marc (the damp solid material) was pressed, and the combined liquids clarified by filtration or decantation after standing.
Hot continuous extraction (Soxhlet)
• In this method, the finely ground crude drug was placed in a porous bag or “thimble” made of strong filter paper, which was placed in chamber E of the Soxhlet apparatus. The extracting solvent in flask Awas heated and its vapors condense in condenser D. The condensed extract drips into the thimble.
• When the level of liquid in chamber E rises to the top of siphon tube C, the liquid contents of chamber E siphon into flask A.
• These processes were continuous and were carried out until a drop of solvent from the siphon tube does not leave residue when evaporated.
• The advantage of this method, compared to previously described methods, is that large amounts of drug can be extracted with a much smaller quantity of solvent.
• This affects tremendous economy in terms of time, energy and consequently financial inputs.
• At small scale, it is employed as a batch process only, but it becomes much more economical and viable when converted into a continuous extraction procedure on medium or large scale.
Ultrasound extraction (Sonication)
• The procedure involves the use of ultrasound with frequencies ranging from 20 kHz to 2000 kHz; this increases the permeability of cell walls and produces cavitation.
• Although the process is useful in some cases, like extraction of rauwolfia root, its large-scale application is limited due to the higher costs.
• One disadvantage of the procedure is the occasional but known deleterious effect of ultrasound energy (more than 20 kHz) on the active constituents of medicinal plants through formation of free radicals and consequently undesirable changes in the drug molecules
Microwave-Assisted Extraction (MAE)
• Microwave-Assisted Extraction (MAE) is a relatively new technique that combines microwave and traditional solvent extraction.
• In MAE, the extraction occurs as the result of changes in the cell structure caused by electromagnetic waves. It has been proposed that the extraction acceleration observed in MAE may be due to the heat and mass transfer gradient working in the same direction.
• Soxhlet extraction, Maceration, Microwave assisted synthesis and Sonication are the basic extraction methods.
Sample preparation for column
30 g of hydroalcoholic extract were weighed and taken for column chromatography. The extract was mixed with petroleum ether to make the slurry which was poured into column. Preparation of Column chromatography
A small precleaned and dried glass with asbestos column (about 60 × 3.5 cm) was used for the column chromatography. Silica gel 60-120 mesh size (Merck Chemicals, Mumbai) which was preactivated at 110-120°C was placed at the bottom and then silica gel was taken and mixed with extract and poured. This was allowed to settle down in column.
For sample application, cotton plug were placed over the layer of packed stationary phase to avoid disturbances of column.
Gravity elution of mobile phase
Gravity elution is a simple method where mobile phase is allowed to run under gravity. In order to fractionate the compounds, the mobile phases with non-polar to polar solvents in different proportion were used for the column chromatography. The flow rate of the mobile phase through the column was adjusted at 25 ml/15 min by the knob. Each 25 ml eluted solution was collected in conical flask and distilled for getting the fraction. Each fraction were collected in test tubes and stored for further processes.
The different organic solvents i.e. non-polar to polar in variable mixtures of solvents were eluted from column. The various solvents like petroleum ether-benzene, Benzene-chloroform, Chloroform-ethyl acetate, Ethyl acetate-acetone, Acetone-methanol and Methanol-glacial acetic acid in variable proportions as 100%, 9:1, 8:2, 7:3, and 1:1 is used.
Thin layer chromatography of each fraction was carried out to find out the homogeneity of each fraction by using number of developing solvent system such as benzene, benzene :ethyl acetate(8:2), ethyl acetate: acetone (8:2), acetone: methanol (9:1). The detecting reagent used was iodine vapors, 50% sulphuric acid and ferric chloride solution (5% w/v in 90% alcohol). The chromatographic pattern of each fraction was studied carefully and the fraction (belonging to the same eluting solvent) which gave identical pattern in respect of color in RF values were mixed.
The fraction 31-60 showed the orange-brown sticky compound, having the same Rf value in the TLC. The remaining fractions were concentrated to a small volume and attempt was made to get crystalline compound by keeping them undisturbed in freeze or at room temperature for some time. By doing so, the fraction no.95-101, 102-107, 108-115, 116-130, 131-142, 143-150, 151-159, 160-165, and 166-170 gave dark brown crystalline compounds. The fraction having crystal in the solution was taken and then the solution was decanted. The crystals were then scraped out separately, and wash quickly with warm petroleum ether (60-80°), benzene, and n-hexane. The crystal obtained after washing was shining brown. This compound was designated as the compounds 1) 95-101, 2) 116-130, 3) 143-150, 4) 171-180 it was kept aside for characterization and identification (Table 2).
The different fraction showed the presence of crystals as follows:
|Column solvent system||Fractions collected No.||TLC mobile phase||Spots|
|Petroleum ether to Benzene||46023||Benzene: Chloroform: Methanol (40:30:30)||No spot|
|Benzene to Chloroform||26-30,31-36,37-42,43-48,||Benzene: Chloroform: Methanol (40:30:30)||Show spots|
|Chloroform to Ethyl acetate||49-55,56-62,63-67,68-71,72-78||Benzene: Chloroform: Methanol (16:9:5)||Show spots|
|Ethyl acetate to acetone||79-81,82-86,87-91,92-95,96-100,101-103||Benzene: Chloroform: Methanol (16:9:5)||Show spots|
|Acetone to Methanol||104-107,108-115,116-122,123-126,127-133,134-138,139-143,144-146||Benzene: Chloroform: Methanol (14:7:8)||Show spots|
|Methanol to glacial acetic acid||147-148,149-152,153-157,158-160,161-164,165-171,172-180||Benzene: Chloroform: Methanol (16:9:5)||Show spots|
Characterization and Identification of the fractions
About 180 fractions were collected from Clerodendrum infortunatum extract and solvent [31-32] fractions were characterized by the chromatographic patterns. The clerodendrum extract is a complex mixture of various phytochemical and this mixture is difficult to separate completely using column chromatography due to its sticky nature. Therefore, plant extract was fractionating by using different organic solvents. The chromatographic patterns of the fractions were carefully studied and the fractions which showed similar TLC pattern were collected together. The isolated fractions were studied for their chemical structure by using chemical test, UV spectroscopy.
Chemical Test of Isolated Fraction
Test for Flavonoid
Shinoda test: 1 g of the fraction was extracted with 10 ml of ethanol (95%) for 15 minutes on a boiling water bath and filtered. To the filtrate a small piece of magnesium ribbon and 3 drops of hydrochloric acid was added, formation of red color indicated the presence of flavonoids.
Lead acetate test: The fractioned compound was mixed with lead acetate solution and observed for the formation of yellow precipitate that indicated the presence of flavonoids.
Test for Steroids
Salkowski reaction: 2 ml of the fractioned compound was placed in a test tube and then 2 ml of chloroform and 2 ml of concentrated sulphuric acid were added to it and shaken well. Chloroform layer appearing red and acid layer showing greenish yellow fluorescence was considered as an indication for the presence of steroids.
Thin Layer Chromatography (TLC)
Spots of isolated fractions and standards were applied on the TLC plate and mixture of were used as mobile phase Rf value of the isolated fraction were noted.
About 10 mg of the isolated fractions from column chromatography was dissolved in 100 ml of methanol, 1 ml from the resulting solution was pipetted out and diluted up to 10 ml with methanol and analyzed using Ultraviolet and Visible Spectroscopy (UV-1800 UV Spectrometer, Shimadzu) in the range of 200-400 nm. Methanol was used as a blank. Similarly, dilution were made for all the isolated fractions and analyzed.
Morphological characteristics of hydroalcoholic extract
Color, odor and taste were shown in Table 3 and Hydroacholic extract shown in Figure 2.
|Sr. No.||Test||Characteristics of Hydro Alcoholic Extract|
A Table 3 show the color of hydroalcoholic extract was greenish-black, odour was characteristics and sweet taste.
Phytochemical and Preliminary Screening of the Extract
Solubility of the extract in various solvents is shown in Table 4.
|3||Petroleum ether||Sparingly soluble|
The hydroalcholic extract of Clerodendrum infortunatumLinn was soluble in chloroform, water, methanol, ethanol, acetoneand sparingly soluble in petroleum ether.
Chemical test for hydroalcholic extract
Chemical test for hydroalcholic extract shown in (Table 5, Figures 3 and 4).
|1. Shinoda test||Magenta red color is observed||Flavonoids are present|
|2. Lead acetate test||Yellow precipitate are formed||Flavonoids are present|
|3. With sodium hydroxide||Yellow coloration (Thus decoloration after addition of HCL) (acid)||Indicating presence of flavonoids|
TLC (Rf value) of hydro alcoholic extraction
For Value of the hydroalcolic extract shown in Table 6.
|SR. NO.||Solvent System||No. of Spot||RF Value|
|1||Ethyl acetate : Benzene : Methanol : Water (75:5:10:10)||Two||0.96 and 0.49|
|2||Ethyl acetate : Formic acid : Methanol : Water (50:5:2:4)||Two||0.91 and 0.60|
|3||N-butanol : Acetic acid : Water (8:2:10)||Two||0.96 and 0.37|
|4||Ethyl acetate : Acetone : Formic acid : Water (50:30:10:10)||Two||0.86 and 0.36|
|5||Chloroform : Toluene : Ether : Acetic acid (60:60:15:5)||Two||0.42 and 0.45|
|6||Toluene : ethyl acetate : formic acid (50:40:10)||Two||0.32,0.75|
Toluene: ethylacetate: formicacid (50:40:10) Chloroform: Toluene: Ether: Aceticacid (60:60:15:5).
Extraction and Chemical Evaluation of Plant Material
Extraction of the plant material with various organic solvents in increasing order of polarity with the help of following solvents (Table 7 and Figure 5).
• Petroleum ether (60-80)
|Petroleum ether (60-80)||0.0243|
Different solvent systems were tried for the complete separation of the phytochemical present in the hydroalcoholic extract. The Extraction of the plant material with various organic solvents in increasing order of polarity was identify the more percentage yield was found to be petroleum ether as compare to chloroform, acetone, methanol.
Chemical Test of different extraction
Chemical Test of different extraction shown in Table 8.
|1)Petroleum ether (60-80)|
|Test sample (1-2 mg)was dissolved in 1 ml ofchloroform (CHCl3) and 1 ml of concentrated H2SO4 was added||Green color appeared in chloroform layer||Sterol present|
|2) Chloroform||Green color appeared in chloroform layer||Sterol present|
|a)Salkowaski testTest sample (1-2 mg) was dissolved in 1 ml of chloroform (CHC13 and 1 ml of concentrated H2SO4 was added|
|b) Shinoda test:Small quantity of test residue was dissolved 5 ml of ethanol (95% v/v) and treated with few drops of conc. HCl and 0.5 g o g magnesium metal.||Brownish black color are form||Flavonoids are absent|
|c) Molisch test : Sugar testmolisch reagent (1 ml)was mixed with 2 ml of test solution and then 1 ml of conc. H2SO4 was added.||Green ring at the junction of two liquid||Carbohydrate are absent|
|3)Acetonea) Test for Tannins1) Ferric chloride :-Test sample (2 ml) was mixed with FeCl3 solution (5%)||Blue-black color are observed||Tannins are present|
|2)Lead acetate:Test solution was mixed with lead acetate solution and observed for the formation of white ppt||White ppt are form||Tannins are present|
|b) Shinoda test: Test for flavonoids small quantity of test residue was dissolved 5 ml of ethanol (95% v/v) and treated with few drops of conc. HCl and 0.5 g o g magnesium metal||Brown color are observed||Flavonoids are absent|
|4) METHANOL||Blue-black color obsered||Tannins are present|
|a) Test for Tannins1) Ferric chloride:Test sample (2 ml) was mixed with FeCl3 solution (5%)|
|2)Lead acetate:-Test solution was mixed with lead acetate solution and observed for the formation of white ppt||White ppt appeared||Tannins are present|
|b) Test for flavonoids(Shinoda test ) Small quantity of test residue was dissolved 5 ml of ethanol (95% v/v) and treated with few drops of conc. HCl and 0.5 g magnesium metal||Magenta-red color are observed||Flavonoids are present|
The different solvent extracts of Clerodendrum infortunatum Linn in pertoleum ether and Chloroform shown the presence of steroids whereas extracts in acetone and methanol shown the presence of flavonoids and tannins (Table 9 and Figure 6).
|SR. NO.||Organic Solvent||Solvent System||No. of Spot||RF Value|
|1||Petroleum Ether||Benzene : Ethyl Acetate (8:2)||Two||0.84, 0.95|
|2||Chloroform||Ethyl Acetate : MeHO (7:3)||Two||0.18, 0.84|
|3||Acetone||Ethyl Acetate : MeHO (7:3)||Two||0.80,0.78|
|4||Methanol||Ethyl acetate : formic acid : glacial acetic acid : water (100:11:11:26)||Two||0.90,0.86|
The characterization of different extraction and showing Rf value near to each other of TLC and showing two spots.
Different extraction methods
Extraction of plant material with the help of following extraction methods to determine the percentage yield of total flavonoids.
• Cold maceration
• Hot continuous percolation (Soxhlet extraction)
• Microwave assisted extraction
• Ultrasonic extraction
Percentage yield of each extraction methods
Percentage yield of each extraction methods shown in Table 10 and Figure 7.
|Methods of extraction||Weight of plant material (g)||(%) yield|
|Cold maceration||25 g||0.0216|
|Soxhlet extraction||25 g||0.0516|
|Microwave assisted extraction||25 g||0.0364|
|Ultrasonic extraction||25 g||0.0104|
The soxhlet extraction was more percentage yield of each compare to the other extraction methods.

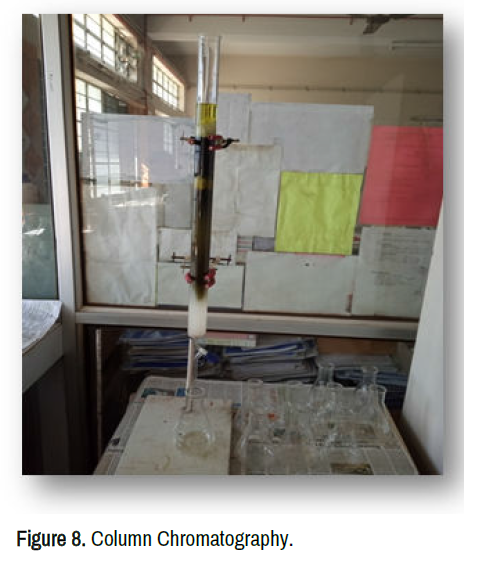

The different fractions was collected in the column chromatography (Figure 8).
Preliminary test for fractions
Preliminary test of fractioned compounds was shown in Table 11.
|Solvent system(Fraction No.)||Test for Flavonoid||Test for Steroids||Test for Carbohydrate|
|Ethyl acetate : acetone(1:1)(79-103)||+||-||+|
|Acetone : Methanol(1:1)(104-146)||+||-||-|
|Acetone : Methanol(1:1)(147-158)||+||+||+|
|Methanol : Glacial Acetic Acid(9:2)||+||-||+|
The ethyl acetate: acetone showed the presence of Flavonoids, Carbohydrate. The acetone: methanol shown the presence of flavonoids. The acetone: methanol fraction shown presence of flavonoids, steroids, fatty acid, carbohydrates.
TLC of isolated fractions
The Rf value of the isolated fractions with standard is mentioned the spots was detected by using iodine chamber illustrated (Figure 9 and Table 12).
TLC of Isolated Fractions with Standards
|Sr. no.||Samples||Number of spots||Rf value|
|1||Ethanol extract||6||0.75, 0.32,0.42,0.45|
|4||Isolated fraction 1||1||0.74,0.72|
|5||Isolated fraction 2||1||0.33|
|6||Isolated fraction 3||1||0.75|
The isolated fraction 1 and 3 showed the same Rf value as that of quercitin. The isolated fraction 2 shown same Rf value as that of rutin.
TLC of isolated fractions with standards
Comparative TLC of isolated compound and standard quercetin (Figure 10 and Table 13).
A: Isolated compound
|Sr. No.||Sample||Mobile phase||No. of spots||Rf value|
|1||Isolated compound||Toulene: Ethyl acetate; formic acid||2||0.84, 0.64|
|2||Standard quercetin||Toulene: Ethyl acetate; formic acid||1||0.84|
The solvent system used for isolated compound was toulene, ethyl acetate, formic acid. The isolated compound shown the same Rf value as that of standard quercetin.
UV visible spectroscopy of isolated fractions
UV spectrum of all isolated fractions and standards are illuminated in figures. The major peaks of isolated compounds from column are in the UV range and mentioned (Figure 11 and Table 14).
|1||Isolated fraction (104-146)||214260|
|3||Isolated fraction (147-158)||204270|
|4||Isolated fraction (158-158)||204300230|
On the basis of λmax of standard compared to λmax of isolated fractions, fraction 104-146 was found to be quite comparable with that of quercetin.
The leaves of Clerodendruminfortunatum Linn were collected, dried and authenticated. The dried parts were pulverized to make coarse materials which were used for experimental work. Total one kg of plant material was accurately weighed and according to the plan of work the leaves of the Clerodendruminfortunatum Linn defatted with petroleum ether. The defatted marc was then refluxed with 80% ethanol for 12 hours. The ethanolic extract was then subjected for evaluation. The prelimnary phytochemical screening showed that the leave extract showed the positive test in Molisch test, Shinoda test, Alkali test, Lead acetate test and salkowski test. Rf value of leave extract was calculated using various mobile phase like Ethyl acetate : formic acid : glacial acetic acid : water (100:11:11:26), Toluene : ethyl acetate : formic acid (50:40:10), Chloroform : Toluene : Ether : Acetic acid (60:60:15:5) Extraction of the plant with various organic solvents in increasing order of polarity with the help of various solvents were performed and the percentage yield was calculated. The prelimnary phytochemical study of the extract of different solvent was done and also the Rf value was calculated by using thin layer chromatography. The comparative study of the leave extract with the standard of Quercetin was performed and the Rf value was calculated.
The column chromatography of the 80% ethanolic extract over silica gel afforded various compounds (fractions) which was identified as flavonoids, long chain of fatty acids, sterols, etc. The TLC studies, UV spectroscopic study were also carried out on fractions and both these studies confirmed that the flavonoids, steroids and fatty acids.
Extraction of plant material with different extraction methods to determine the percentage yield of total flavonoids.
• Cold maceration
• Hot continuous percolation (Soxhlet extraction) more percentage yield
• Microwave assisted extraction
• Ultrasonic extraction
In the present study it was concluded that-
• presence of flavonoids in 80% hydroalcoholic extract.
• The column chromatography of 80% hydroalcoholic extract yielded compounds like flavonoids, steroids etc.
• The flavonoids rich fraction (compound) was compared with a standard flavonoids i.e. quercetin, which showed a comparable results.
• The extraction of plant material with various organic solvents in increasing order of polarity was identifty the more percentage yield was found to be petroleum ether.
• The extraction of plant material with different extraction methods. Thesoxhlet extraction were more percentage yield was found by compare to the other extraction methods.
I Acknowledged to Dr. AbhayIttadwar (Principal) and My Guide Dr. ShekharWaikar of Gurunanak College of Pharmacy, Nagpur for allowing me to research work in the institute setup.
I dedicate thise research work publication under the guidance of Dr. Mudhada sir (Principal) Agnihotri College of Pharmacy, Wardha and my Colleagues for their valuable time and guidance.
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Google Scholar, Crossref, Indexed at
Journal of Pharmacognosy & Natural Products received 606 citations as per Google Scholar report
