A Research Study Done on the Adaptation of Building Information Modelling in Various Fields of a Construction Project

Gauthami Krishna^*
*Correspondence: Gauthami Krishna, Masters in Architecture & Environmental Design, Jawaharlal Nehru Architecture and Fine Arts University (JNAFAU), Hyderabad, India, Tel: + 9533499759, Email:

Keywords

Building Information modelling • Construction project • Design • Construction • Operation and management • Sustainability and energy • Project lifecycle

Introduction

Building information modelling is a digital form of recording the entire project lifecycle including all the phases from conceptual designing till the construction also including the operation [1] and production management [2]. Breaking through manual working approaches, it provides more information flow between all work-sectors involved in the project. Despite its recent entry into the construction industry, the use of BIM in project helps create a language among the parties involved in the project helping the project manager in various disciplines and phases [3], revolutionising the building design, construction and day-to-day operations, enhancing the efficiency of project [4]. Creating a virtual and reliable source of information with respect to various parameters, BIM is the emerging technology handling information in the AEC industry [5].

In context to the varied application of BIM by various public and private investors involved in the construction industry, are investing on a large scale into BIM [6].

Despite its advantages and use in many construction projects, the industry itself obstructs its full use [1] and effective application [7]. Hence government initiatives to increase the role of BIM can change the practices in the industry [1], with various initiatives like policy formation, BIM organisation, research areas identification etc. having been formulated by various BIM fields in USA, Norway, Finland, Denmark, Singapore and Hong Kong [8], resulting in an increase in its use over past few years in various countries like North America, U.K., Scandinavia etc. [7].

Although BIM in developed nations is well established, the construction companies in developing nations are facing many hurdles with respect to technological, social and economic aspects [9]. The rate at which BIM is being adopted is relatively slow in Chinese construction industry [10] and also in Pakistan industry [11].

Despite its varied uses BIM’s hands have not yet extended completely to certain aspects like sustainability, renovation and re-construction, energy simulation tools and adaptation of social sustainability into a project [12]. The need of technical support, reduced construction cost benefits and software package with the use of BIM are also yet to be addressed [13].

In the Architecture, Engineering, Construction and Operations (AECO) industry the use of BIM has been explicit with an expansive knowledge base [14] but few of the areas in which BIM is lagging behind have come forth after extensive research in the field [12]. Considering the positives and negatives, advantages and drawbacks that are faced due to the use of BIM in a construction project, various professionals have contributed researches on various platforms. The paper aims to examine 130 publications on the adaptation of BIM in construction project during various phases. Categorising into 6 broad aspects - BIM, Design, Construction, Operation and Maintenance, Sustainability and Energy and Project Lifecycle. Firstly extensive research done on BIM with respect to relevance, use, software, benefits, and adoption; Design stages of macro and micro level planning, building, landscape, renovation and conservation, heritage buildings etc; Construction with the broad aspects of construction management, conflict management, information management, etc; Operation and Management from project delivery to the end of building; Sustainability and Energy and the overall Project Lifecycle Assessment. The paper elaborates further on the fields mentioned above.

Study Area

BIM is widely used for designing, construction and management of the project involving a digital representation of the project also changing the way in which the building looks, functions, designed and built. Calculating and documenting the time, cost and labour required it acts as a source for better construction management and practices [15]. Integrated construction environment backs up the effective use of BIM in the growing trends of energy efficient and sustainable building construction [16] and project lifecycle [17].

BIM

BIM software is a computer programming language that enables the users to build models provided with necessary information that has multiple visual programming languages providing operators with specific languages that can be used for Industry foundation classes models and code compliance checking [18] a standard semantically rich 3D modelling tool that is one of the most popular schema model currently used in the industry [19].

Design

Considering the technology driven transformation, various core aspects with respect to design i.e., understanding, collaboration, decision making etc can be addressed to and integrated with the help of BIM [20,21]. With the emerging concept of smart city, the integrated application of BIM and GIS has taken a new direction and is in the stage of early exploration [22]. Aiding smart city initiatives, BIM-GIS based systems for energy planning is proposed as a solution to optimally and technically integrate the emerging smart city concept [23]. With respect to the professional’s interaction with the client in connection to design, construction and maintenance process on a functional level. The integrated use of BIM with a gaming engine has been proved to be a promising potential support that enables functional collaboration and interaction of both the parties providing a practical solution to the little addressed issue [24]. Heritage Building Information Modelling tools are used in restoration of buildings in a retrofitting and conservation framework [25]. Extending further, the use of BIM for landscape projects enables the designer to establish a more informative working environment increasing fields for designing and managing the project and schedule backed up with managerial, scientific, professional and practical approach [26].

Construction

Various project management benefits with the help of BIM can be achieved making use of BIM as a feasible and promising source of identifying the progress, conflict checks, construction resource management and cost benefits [27,28]. BIM can be used by project managers to avoid unnecessary works and save time and cost [29], improving work flow with visual base of the project [30], providing for a successful project delivery [29]. With the use of BIM, construction conflicts can be predicted and rectified or eliminated improving the efficiency of project delivery [31]. Ensuring practical understanding of the whole project, BIM ensures a check and helps predict probability of accidents [32]. Safety planning and management at construction sites can also be improved with the help of BIM, 3D and 4D simulations and other visualisation technologies [33-35].

Operation and Management

Integration of BIM with facility management, BMS and front-end sensor data visualisation aided environmental sensing helping the operation and maintenance stages [36,37]. The information stored in BIM while construction if retrieved during the operation stage can significantly increase the service life of the project also making the maintenance easy [38]. Furthermore BIM can also be used to ensure fire safety with respect to evacuation assessment and route planning, safety education and equipment planning [39]. BIM with the involvement of the client, with his/her maturity levels as a potential ability to interact with the BIM can help monitor the benefits of BIM in building disaster management as well [40].

Sustainability and Energy

BIM’s ability to serve as a multidisciplinary has made it feasible to explore its sustainability value [41]. With the growing importance and need of BIM in the construction industry, most construction companies are adopting BIM technologies in adaptation to the changing context, towards more sustainable environment [42]. Recent advancements have seen the integration of Building Information Modelling and Building Energy Modelling in the light of achieving growing energy conservation needs leading to updates in environmental policies [43]. When plugged in with an energy performance analysis tool, BIM can also act as an energy simulation tool providing the designers with greater fields with respect to sustainability and energy efficient factors [41].

Project Lifecycle

The innovations of BIM have continuous adaptation 3D model that provides information, data and a series of steps with respect to optimization and preparation of design requirements, construction, processing and pulling down covering the process of building lifecycle management [44,45].

People, process and technology form a basis for resistance in adoption of BIM in most of the newly entering construction companies, while on the contrary experienced and advanced construction companies are increasingly adopting BIM for its efficiency and competitive advantages [46]. BIM, even though being of great advantages with respect to project quality and costs, it requires certain changes to be adopted with its current practices in terms of its use in processing and technology for project management. Hence emphasizing the roles and responsibilities of the construction players using BIM might differ from conventional practices [47]. The role of sufficient information to be acquired from contractors and operators to facilitate the BIM software is very crucial. It is well known that BIM helps in various decisions making and project delivery aspects but its full benefits cannot be exploited unless the relation between site and model is linked correctly [13].

The divergent application of various fields within BIM has also been explored with a set of defined components and boundaries outlined providing a set of guidelines and BIM framework [14]. The integration of BIM and off-site construction are increasingly being applied in the AEC industry with its advantages in aiding the project stakeholders with visualization, waste management etc., and lot of research is also being done to bring out advantages and applications of BIM [48].

Research Methodology and Data Analysis

Methodology

To review, a three step model examines journal articles, conference papers and books. The first step, journal articles, conference papers and books are classified according to the fields. The found journals were further categorised under a table dealing with:

• BIM

• Design

• Construction

• Operation and Management

• Sustainability and Energy and

• Project Lifecycle (Table 1).

Table 1. Examined articles classified according to fields.

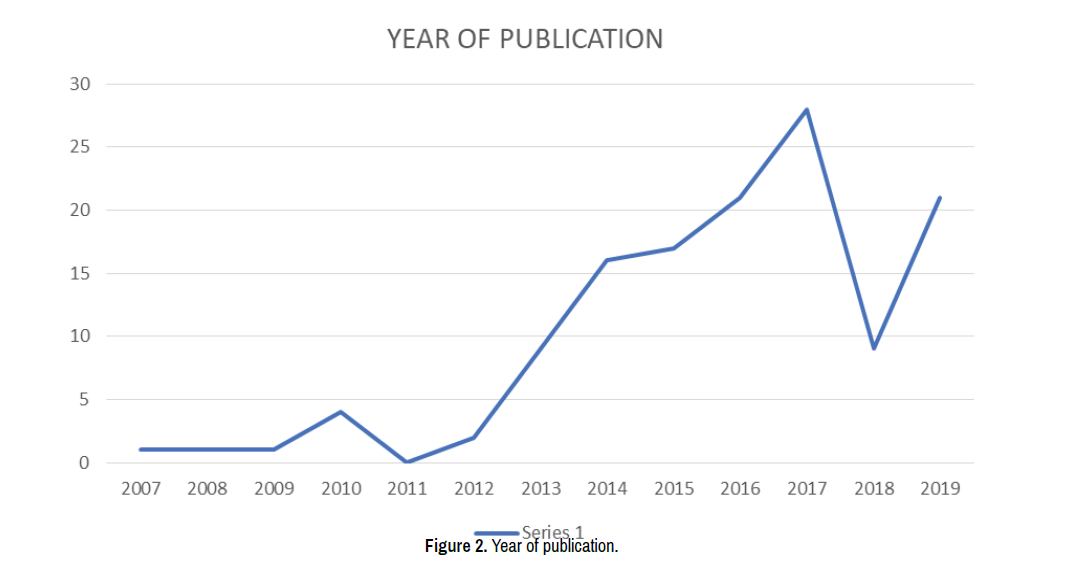

The second step included the year of publication of the articles, conference papers and books. The third step involved the cumulating of both first and second steps (Table 2).

Table 2. Examined articles classified according to year of publication and fields.

Over 130 publications (journal articles, conference papers and books) were examined with 111 journal articles, 10 books and 9 conference papers. Figure 1 elaborates the percentage of research done in various fields of project life. Figure 2 represents the research done in various years starting from 2007- 2019. Figure 3 is a cumulative analysis of the amount of research done in various fields from 2007-2019. These figures indicate the increase in research with respect to the fields, with the highest contribution of research being done for construction phase of the project. Design phase stands next highest. While there is still research going on with respect to operation and management stages, the research on sustainability and energy is progressive. Research on BIM is increasing day-by-day with its increasing adaptation; research in specific fields is on a varied scale.

Discussion and Inferences

From visualization of the project enhancing the decision making process and tracking digital project documents [49], the early architectural design stage [50], the planning and preplanning stages [51], micro and macro level planning [17], construction safety [52], Facility management [53], Construction Waste Management [54], building performance management [55], eco-feedback systems engaging the end users [56], with respect to technology, urban governance, life cycle and energy management [17] BIM acts as a mediator creating a relationship that conflicts the existing work practices and provides a new dimension to work environment [57].

Solutions provided to overcome [58] the on-site implementation [59], data accumulation and exchange [60], semantic web technologies to track uncertainties and risks [61], research prevent design hindrances in renovation projects [62] have provided scope for better implementation of BIM [63].

Conclusion

Despite the many advantages of using BIM, there is a stigma surrounding it to be a disruptive force that is changing the way of designing, building and managing the built structures. But insights into the essays composed by leaders from professional sources provided the potential benefits of using BIM speculating its future.

References

1. Borrmann, André, M König, Koch C and J Beetz. “Buiiding information modeling” Springer International Publishing (2018).
2. Brito, Douglas M and Emerson AM Ferreira. “Strategies for Representation and Analyses of 4D Modeling Applied to Construction Project Management” Procedia Economics and Finance Science Direct 21 (2015): 374-382.
3. Rokooei, Saeed. “Building Information Modeling in Project Management: Necessities, Challenges and Outcomes” Procedia - Social and Behavioral Sciences 210 (2015): 87-95.
4. Garber, Richard. “BIM Design: Realising the Creative Potential of Building Information Modelling” Wiley (2014).
5. Bartosz, Jankowski, Jakub Prokocki and Michał Krzemiński. “Functional Assessment of BIM Methodology Based on Implementation in Design and Construction Company” Procedia Engineering – Science Direct 111 (2015): 351-355.
6. Beata, Grzyl, Emilia Miszewska-Urbańska and Magdalena Apollo. “Building Information Modelling as an Opportunity and Risk for Stakeholders Involved in Construction Investment Process” Procedia Engineering 196 (2017): 1026-1033.
7. Smith, Peter Smith. “BIM Implementation – Global Strategies” Science direct (2014).
8. Wong, Andy KD, Francis KW Wong and Abid Nadeem. “Attributes of Building Information Modelling Implementations in Various Countries. Architectural Engineering and Design Management 6 (2010): 288-302.
9. Bui, Nam, Christoph Merschbrock and Bjørn Erik Munkvold. “A Review of Building Information Modelling for Construction in Developing Countries” Procedia Engineering 164 (2016): 487-494.
10. M, Herr, Christiane and Thomas Fischer. “BIM adoption across the Chinese AEC industries: An extended BIM adoption model” Journal of Computational Design and Engineering 6 (2019): 173-178.
11. R, Masood, MKN Kharal and AR Nasir. “Is BIM Adoption Advantageous for Construction Industry of Pakistan?” Procedia Engineering 77 (2014): 229-238.
12. Chong, Heap-Yih, Cen-Ying Lee and Xiangyu Wang. “A mixed review of the adoption of Building Information Modelling (BIM) for sustainability” A mixed review of the adoption of Building Information Modelling (BIM) for sustainability 142 (2017): 4114-4126.
13. Chandra, Herry Pintardi, Paulus Nugraha and Evan Sutanto Putra. “Building Information Modeling in the Architecture-engineering Construction Project in Surabaya” Procedia Engineering 171 (2017): 348-353.
14. Succar, Bilal. “Building information modelling framework: A research and delivery foundation for industry stakeholders” Automation in Construction 18 (2009): 357-375.
15. Sacks, Rafael, Chuck Eastman, Ghang Lee and Paul Teicholz. “BIM Handbook: A Guide to Building Information Modeling for Owners, Designers, Engineers, Contractors, and Facility Managers” Wiley (2018).
16. Zhang, Miao, Dan Tan and Yang Zhang. “Analysis of BIM application relationship with integration degree of construction environment” Chinese Journal of Population Resources and Environment 11 (2013): 92-96.
17. Hao, Wang, Yisha Pan and Xiaochun Luo. “Integration of BIM and GIS in sustainable built environment: A review and bibliometric analysis” Automation in Construction 103 (2019): 41-52.
18. Cornelius, Preidel, Simon Daum and André Borrmann. “Data retrieval from building information models based on visual programming” Springer Link (2017).
19. Isikdag, Umit. “Enhanced Building Information Models” Springer Link (2015).
20. Forsythe, Perry, Julie Jupp and Anil Sawhney. “Building Information Modelling in Tertiary Construction Project Management Education: A Programme-wide Implementation Strategy” Journal for eduation in the Built Environemnt 8 (2013): 16-34.
21. Paweł, Nowak, Mariola Książek, Marcin Draps and Jacek Zawistowski. “Decision Making with Use of Building Information Modeling” Procedia Engineering 153 (2016): 519-526.
22. Ma, Zhiliang and Yuan Ren. “Integrated Application of BIM and GIS: An Overview” Procedia Engineering  (2014).
23. Shinji Yamamura, Liyang Fan and Yoshiyasu Suzuki. “Assessment of Urban Energy Performance through Integration of BIM and GIS for Smart City Planning” Procedia Engineering 180 (2017): 1432-1472.
24. Edwards, Gareth, Haijiang Li and Bin Wang. “BIM based collaborative and interactive design process using computer game engine for general end-users” Visualization in Engineering 3 (2015): 4.
25. Khodeir, Laila M, Dalia Aly and ShaimaaTarek. “Integrating HBIM (Heritage Building Information Modeling) Tools in the Application of Sustainable Retrofitting of Heritage Buildings in Egypt” Procedia Environmental Sciences 34 (2016): 258-270.
26. Institute, L. “BIM for Landscape” Taylor and Francis (2016).
27. Li, Jian, Lei Hou, Xiangyu Wang and Jun Wang. “A Project-Based Quantification of BIM Benefits” Interantional Journal of Advanced Robotics System 11 (2014).
28. Aleksander K Nicał and Wojciech Wodyński. “Enhancing Facility Management through BIM 6D” Procedia Engineering - ScienceDirect 164 (2016): 299-306.
29. Fazli, Abdulsame, SajadFathi, Mohammad Hadi Enferadi and Mayram Fazli, et al. “Appraising Effectiveness of Building Information Management (BIM) in Project Management” Procedia Technology – Science Direct 16 (2014): 1116-1125.
30. Sacks, Rafael, Milan Radosavljevic and Ronen Barak. “Requirements for building information modeling based lean production management systems for construction” Automation in Construction- ScienceDirect 19 (2010): 641-655.
31. Charehzehi, Aref, Chang Saar Chai, Aminah Md Yusof and Heap-Yih Chong, et al. “Building information modeling in construction conflict management” International Journal of Engineering Business Management  9 (2017).
32. Ganah, Abdulkadir and Godfaurd A John. “Integrating Building Information Modeling and Health and Safety for Onsite Construction” Safety and Health at Work 6 (2015): 39-45.
33. Azhar, Salman. “Role of Visualization Technologies in Safety Planning and Management at Construction Jobsites” Procedia Engineering 171 (2017): 215-226.
34. Hongling, Guo, Yu Yantao, Zhang Weisheng and Li Yan. “BIM and Safety Rules Based Automated Identification of Unsafe Design Factors in Construction” Procedia Engineering 164 (2016): 467-472.
35. Zhang, Sijie, Jochen Teizer, Jin-Kook Lee and Charles M Eastman. “Building Information Modeling (BIM) and Safety: Automatic Safety Checking of Construction Models and Schedules” Automation in Construction 29 (2013): 183-195.
36. Chien, Szu-cheng, Tzu-chun Chuang, Huei-Sheng Yu and Yi Han. “Implementation of Cloud BIM-based Platform towards High-performance Building Services” Procedia Environmental Sciences 38 (2017): 436-444.
37. Oti, AH, E Kurul J, F Cheung and JHM Tah. “A framework for the utilization of Building Management System data in building information models for building design and operation” Automation in Construction 72 (2016): 195-210.
38. Marchini, A and JO Patzlaff. “Building information modeling (BIM) application in civil constructions intending the increase of service life” Journal of Building Pathology and Rehabilitation (2016).
39. Wang, Shih-Hsu, Wei-Chih Wang, Kun-Chi Wang and Shih-YuShih. “Applying building information modeling to support fire safety management” Automation in Construction 59 (2017): 158-167.
40. Dakhil, Ammar and Mustafa Alshawi. “Client's Role in Building Disaster Management through Building Information Modelling” Procedia Economics and Finance 18 (2014): 47-54.
41. Samuel, Egwunatum I, EstherJoseph-Akwara and Akaigwe Richard. “Assessment of energy utilization and leakages in buildings with building information model energy” Frontiers of Architectural Research  6 (2017): 29-41.
42. Aladag, Hande, Gökhan Demirdögen and Zeynep Isık. “Building Information Modeling (BIM) Use in Turkish Construction Industry” Procedia Engineering 161 (2016): 174-179.
43. Khodeir, Laila Mohamed and Ashraf Ali Nessim. “BIM 2 BEM integrated approach: Examining status of the adoption of building information modelling and building energy models in Egyptian architectural firms” Ain Shams Engineering Journal 9 (2018): 1781-1790.
44. Ustinovičius, Leonas, Romas Rasiulis, LukaszNazarko and Tatjana Vilutienė. “Innovative Research Projects in the Field of Building Lifecycle Management” Procedia Engineering 122 (2015): 166-171.
45. Migilinskas, Darius, Vladimir Popov, Virgaudas Juocevicius and Leonas Ustinovichius. “The Benefits, Obstacles and Problems of Practical Bim Implementation” Procedia Engineering 57 (2013): 767-774.
46. Ali, KN, WI Enegbuma, AC Ologbo and UG Aliagha. “Preliminary Study Impact of Building Information Modelling Use in Malaysia” IFIP International Conference on Product Lifecycle Management (2014): 51-62.
47. Latiffi, Aryani Ahmad, Juliana Brahim and Mohamad Syazli Fathi.  “Roles and Responsibilities of Construction Players in Projects Using Building Information Modeling” IFIP International Conference on Product Lifecycle Management (2015): 173-182.
48. Yin, Xianfei, HexuLiu, Yuan Chen and Mohamed Al-Hussein. “Building information modelling for off-site construction: Review and future directions” Automation in Construction 101(2019): 72-91.
49. Bolshakova, Veronika. “Frontiers of Engineering Management” Springer Link (2019).
50. Penttilä, Hannu. “Early Architectural Design and BIM. Computer-Aided Architectural Design Futures” Springer Link (2007): 291-302.
51. Peckienė, Aurelija and Leonas Ustinovičius. “Possibilities for Building Spatial Planning using BIM Methodology” Procedia Engineering 172 (2017): 851-858.
52. Akram, Ramsha, Muhammad Jamaluddin Thaheem, Abdur Rehman Nasir and Tauha Hussain Ali “Exploring the role of building information modeling in construction safety through science mapping” Safety Science 120 (2019): 456-470.
53. Aziz, Nor Diana, Abdul Hadi Nawawi and Nor Rima Muhamad Ariff. “Building Information Modelling (BIM) in Facilities Management: Opportunities to be Considered by Facility Managers” Procedia - Social and Behavioral Sciences 243 (2016): 353-362.
54. Lu, Weisheng, Chris Webster, Ke Chen and. Xiaoling Zhang. “Computational Building Information Modelling for construction waste management: Moving from rhetoric to reality” Renewable and Sustainable Energy Reviews 68 (2017): 587-595.
55. Gerrish, Tristan, Kirti Ruikar, Malcolm Cook and Mark Johnson. “BIM application to building energy performance visualisation and management: Challenges and potential” Energy and Buildings 144 (2017): 218-228.
56. Truong, Hanh. “Method for visualizing energy use in building information models” Energy Procedia 142 (2017): 2541-2546.
57. Voordijk, Hans. “Building information modeling and its impact on users in the lifeworld: a mediation perspective” Frontiers of Engineering Management 6 (2019): 193-206.
58. Morlhon, Romain, Robert Pellerin and Mario Bourgault. “Building Information Modeling Implementation through Maturity Evaluation and Critical Success Factors Management” Procedia Technology 16 (2014): 1126-1134.
59. Bargstädt, Hans-Joachim. “Challenges of BIM for Construction Site Operations” Procedia Engineering 117 (2015):  52-59.
60. Pishdad-Bozorgi, Pardis, Xinghua Gao, Charles Eastman and Alonzo PatrickSelf. “Planning and developing facility management-enabled building information model (FM-enabled BIM)” Automation in Construction 87 (2018): 22-38.
61. Pruvost, Hervé and Raimar J Scherer “Analysis of Risk in Building Life Cycle Coupling BIM-based Energy Simulation and Semantic Modeling” Procedia Engineering 196 (2017): 1103-1113.
62. Stegnar, G and T Cerovšek. “Information needs for progressive BIM methodology supporting the holistic energy renovation of office buildings” Energy 173 (2019): 317-331.
63. Kensek, Karen and Douglas Noble. “Building Information Modeling: BIM in Current and Future Practice” Wiley (2014).
