CT Classification of Vacuum Phenomenon Morphology and its Utility in Predicting Lumbar Vertebral Instability

Noah Kelm1*, Jennifer Hella2, John B Westfall3, Eric T Ballard3 and Macksood A Aftab2
*Correspondence: Dr. Noah Kelm, Department of Orthopedic Surgery, Ascension Genesys Hospital, Grand Blanc, USA, Email:
1Department of Orthopedic Surgery, Ascension Genesys Hospital, Grand Blanc, USA
2Department of Research, Ascension Genesys Hospital, Grand Blanc, USA
3College of Osteopathic Medicine, Michigan State University, East Lansing, USA

Received: 26-Nov-2021 Published: 17-Dec-2021
Citation: Kelm, Nelm, Jennifer Hella, John B Westfall and Eric T Ballard. "CT Classification of Vacuum Phenomenon Morphology and its Utility in Predicting Lumbar Vertebral Instability." J Morphol Anat S3 (2021): 003
Copyright: © 2021 Kelm N, et al. This is an open-access article distributed under the terms of the creative commons attribution license which permits unrestricted use, distribution and reproduction in any medium, provided the original author and source are credited.

Abstract

Background: Lumbar vacuum phenomenon (VP) within the intervertebral disc has been classified based on CT imaging. We compared same-patient sagittal CT images and dynamic flexion-extension x-rays to determine if there is a difference in the amount of vertebral instability present between three VP morphologies on CT.

Methods: Anterior subluxation measurements on x-ray were compared with same-segment VP on CT images from the same patient when both findings were present. VP were classified as spot, island, or linear. It was determined if there was a difference in the amount of anterior subluxation between the three morphologies. Secondary analysis looked at whether there was a difference in anterior subluxation between the three groups if patients had undergone a prior lumbar fusion surgery or not.

Results: There was no difference in anterior subluxation between the three groups on dynamic flexionextension x-rays. There was also no difference between the three groups on flexion-extension x-rays when patients were separated based on if they had received or not received a previous lumbar fusion surgery.

Conclusion: IVD VP morphology is not a useful indicator in determining vertebral instability preoperatively according to CT scan. Further fine-tuning of an IVD VP CT classification is needed to help radiologists and spine surgeons know when IVD VP presence is important.

Keywords

Vacuum phenomenon • Intervertebral disc • Intervertebral disc degeneration • Lumbar spinal instability • Computed tomography flexion-extension X-rays • Lumbar spinal stenosis • Lumbar fusion

Abbreviations

IVD: Intervertebral Disc; AF: Annulus Fibrosis; NP: Nucleus Propulsus; VP: Vacuum Phenomenon; ADH: Anterior Disk Height; PDH: Posterior Disk Height; IS: Isthmic Spondylolisthesis; DS: Degenerative Spondylolisthesis

Background

As Intervertebral Disc (IVD) degeneration progresses, vertebral instability may ensue. Traditionally, flexionextension x-ray images of the spine have been utilized by spine surgeons prior to surgery to determine if dynamic subluxation of adjacent vertebrae or disc height narrowing is present, which helps guide surgical treatment. For instance, the presence of dynamic subluxation pre-operatively may indicate that spinal decompression surgery for spinal stenosis or nerve root impingement may render the spine even more unstable and requires the additional need for fusion with rod and screw constructs or interbody devices [1].

Adjacent vertebrae articulate via the facet joints, but also through the vertebral bodies themselves. Each vertebral segment consists of a cranial and caudal vertebral body and its IVD. These discs allow for flexibility of the vertebral column without the significant sacrifice of strength, as well as providing a shock-absorbing effect. [2]. The IVD consists of an outer Annulus Fibrosis (AF) made of 15–25 sheets or “lamellae” comprised of mostly collagen fibers that provides tensile strength, while the inner Nucleus Propulsus (NP) is comprised of proteoglycan molecules that absorb water, which allows the disc to resist compressive forces by dispersing hydraulic pressure throughout the entire disc when loaded [3]. Aging results in the loss of proteoglycans, which causes the NP to shrink and become fibrotic. More stress is transmitted to the AF, causing it to thicken. As a result, the disc flattens, collagen fibers are lost in the inner AF, and clefts and crevices can form [4,5]. The increasing size of these clefts and crevices can lead to the accumulation of gases within them.

The Vacuum Phenomenon (VP) is a universally accepted term among surgeons and radiologists referring to gaseous lucencies seen in the vertebral bodies, IVD’s, facet joints, and spinal canal on x-ray and CT imaging [6,7]. While originally thought to be due to a variety of pathologies, it has been established in literature that lumbar spine VP is usually due to degenerative changes, and is useful for eliminating infectious, malignant, or traumatic spinal pathologies [8-10]. Recently, CT imaging of VP has been classified based on morphologic characteristics and location within the IVD. This 2-part classification system has demonstrated that certain characteristics of IVD VP are associated with degenerative disc disease and lumbar canal stenosis on MRI, as well as disc height narrowing on x-ray imaging 3. With this study, we look to implement this new classification scheme in our institution on patients with both CT and dynamic flexion- extension x-rays from the same time period to determine if VP morphology can predict vertebral instability prior to spine surgery. If a correlation is present, VP on lumbar CT imaging may become a useful radiologic tool for spine surgeons when analyzing different treatment options pre-operatively. Furthermore, we will compare CT images and flexion-extension x-rays on patients who have previously undergone lumbar fusion to see if VP can measure vertebral instability post-operatively. We will also compare our findings between those who have had previous fusion to those who have not had a previous fusion.

Materials and Methods

A retrospective study was conducted at a community teaching hospital. Institutional review board approval was obtained. Using our institution’s electronic radiology database, all patients who had undergone a lumbar CT and lateral lumbar flexion-extension x-rays of the lumbar spine between January 1, 2017-October 31,2019 were considered for enrollment in our study. Males and females of all ethnic backgrounds and ages who had received both radiologic studies during the same time period were included in our study. Patients who had received prior lumbar surgery (i.e. vertebral augmentation, decompression, fusion with screws/rods or inter body device, or discectomy) prior to CT were included. If patients who had undergone surgery were included, then x-rays and CT’s both had to take place following surgery for a valuable comparison. Exclusion criteria were patients who had imaging of pathologies other than degenerative changes including infectious, malignant, or traumatic findings.

Patient data were collected and managed using REDCap (Research Electronic Data Capture) electronic data capture tools hosted at Ascension Genesys Hospital. REDCap is a secure, web-based software platform designed to support data capture for research studies. The presence of IVD VP’s was determined on CT images. Only VP located in discs between T12-S1 were considered. If VP was present at discs in multiple level in the lumbar spine, or multiple VP’s were present within the same disc, the largest measured VP was collected for our study in millimeters. Therefore, for the sake of simplification, there is a 1:1 ratio of VP’s to patients in our study. Using one dimension of the CT VP classification system, spot was considered any circular or oval-shaped VP less than 2 mm in diameter, while island was circular or oval and greater than 2 mm in diameter. Linear VP was linear, serpentine, or geographical shaped VP (Figure 1). Lateral flexion-extension radiographs of the lumbar spine Page 4/15 were then looked at. Only the vertebral segments including the measured VP’s were analyzed for dynamic subluxation (Figure 2). At these levels, we also measured the Anterior Disc Height (ADH) and Posterior Disc Height (PDH). The ADH was measured as the distance between the most anterior point of the cranial and caudal endplates, while the PDH was the measurement between the most posterior points of the crania and caudal endplates. The primary question of this study is whether there is a significant difference between spot, island, and linear VP morphologies regarding anterior subluxation on flexion-extension x-rays. Based on the sheer size of the island and linear VP being greater than spot VP, we hypothesize that these two morphologies will have a larger amount of dynamic subluxation on flexion-extension radiographs than spot VP. Subanalysis questions included whether there was a difference between ADH and PDH within the three morphologic groups on either flexion or extension x-ray views. In order to eliminate a potential confounding variable, we stratified the groups based on whether the patients had received a prior lumbar fusion surgery or not, and within these two groups, we compared the three different morphologies based on the amount of dynamic subluxation. Lastly, we compared the size of the VP’s of those who had never had a previous lumbar surgery with those who have had a previous lumbar surgery with the hypothesis that lumbar fusion would decrease VP size.

morphology-anatomy-depicts

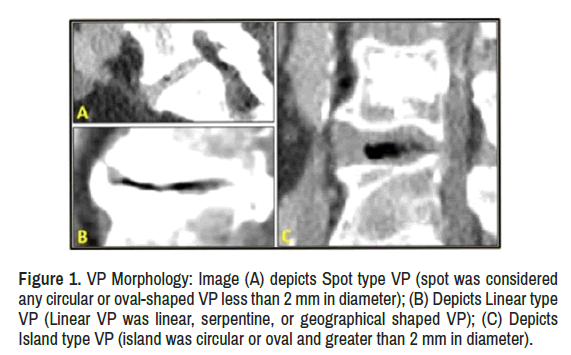

Figure 1. VP Morphology: Image (A) depicts Spot type VP (spot was considered any circular or oval-shaped VP less than 2 mm in diameter); (B) Depicts Linear type VP (Linear VP was linear, serpentine, or geographical shaped VP); (C) Depicts Island type VP (island was circular or oval and greater than 2 mm in diameter).

morphology-anatomy-subluxation

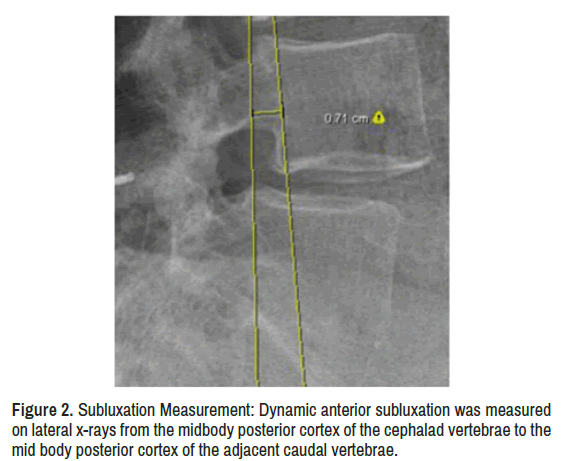

Figure 2. Subluxation Measurement: Dynamic anterior subluxation was measured on lateral x-rays from the midbody posterior cortex of the cephalad vertebrae to the mid body posterior cortex of the adjacent caudal vertebrae.

Statistical analysis

Descriptive statistics included frequencies and percentages. Student’s t-Test and One-way ANOVA were used to compare groups depending on whether we were comparing between two or three means, respectively. Significance was determined as a p-value≤0.05 at a 95% confidence level.

Results

In this study, 114 patients between the ages of 32 and 88 years old (mean age: 63.3 years, SD: 13.1) were assessed. Of these patients, 80 (70.2%) did not have previous surgery, while 34 (29.8%) did have previous surgery. Of the 114 patients included, 88 of the patients had measurable VP in at least one level. Of these patients, 59 had no previous surgery, while 29 had previous surgery.

Of the CT images with VP present, 8% were spot (n=7, no surgery=4, previous surgery=3), 70.5% were island (n=62, no surgery=42, previous surgery=20), and 21.6% were linear (n=19, no surgery=13, previous surgery=6).

Dynamic subluxation comparison between spot, island, and linear VP

When comparing the amount of dynamic subluxation on flexion and extension x-rays between spot,

Island, and linear morphologies, there was no significant difference in our study (Table 1).

Table 1: Dynamic subluxation comparison between spot, island and linear VP.

N  Mean (standard deviation)  P-value
Flexion subluxation 7 4.9 (5.5) 0.29
Spot 62 2.8 (5.4)
Island 19 1.3 (5.2)
Linear
Extension subluxation 7 3.3 (3.9) 0.83
Spot 62 2.1 (5.5)
Island 19 1.9 (4.8)
Linear

When patients were stratified based on no surgery vs. previous surgery patients, there was no significant difference in Page 5/15 flexion or extension subluxation between the three morphologies within the sample of patients with no surgery or within those with previous surgery (Table 2).

Table 2 : Subluxation between no surgery and surgery.

Flexion subluxation N Mean (standard deviation) P-value
No previous surgery Spot 4 7.1 (5.7) 0.15
Island 42 2.8 (5.4)
Linear 13 1.0 (5.3)
Previous surgery Spot 3 1.8 (4.0) 0.88
Island 20 2.9 (5.4)
Linear 6 1.9 (5.4)
Extension subluxation
No previous surgery Spot 4 4.9 (3.9) 0.56
Island 42 2.5 (4.9)
Linear 13 1.9 (4.6)
Previous surgery Spot 3 1.3 (3.4) 0.96
Island 20 1.3 (6.7)
Linear 6 2.2 (2.6)

When comparing flexion to extension x-rays within the same patients, there was no subluxation significance within the spot group (p=0.56), island group (p=0.45), or linear group (p=0.77).

Comparison of anterior and posterior disc height for spot, island, and linear morphologies

We compared the anterior to posterior disc height on flexion x-rays and found that there was a significant difference within the island group (p=0.007), but there was no significant difference within the spot group (p=0.47) or linear group (p=0.39). We then compared the anterior to posterior disc height on extension views and found that there was a significant difference within the island group (p<0.0001) and linear group (p=0.01), and the difference was approaching significance within the spot group (p=0.08) (Table 3).

Table 3: Comparison of Anterior and Posterior disc height between spot, island and linear morphologies between those who have and have not had previous surgery.

Anterior disc height Posterior disc height
Flexion Extension Flexion Extension
N Mean (SD) Mean (SD) N Mean (SD) Mean (SD)
No previous surgery Spot 4 7.5 (4.1) 9.9 (7.4) 4 7.1 (4.6) 5.6 (3.3)
Island 12 8.5 (5.3) 9.9 (6.1) 42 6.1 (3.6) 5.8 (3.5)
Linear 13 5.7 (3.2) 7.0 (4.2) 13 4.3 (3.1) 3.9 (2.1)
Previous surgery Total       59  59
Spot 3 9.9 (3.9) 10.6 (4.9) 3 7.1 (1.7) 5.5 (1.5)
Island 20 10.0 (6.1) 9.3 (4.4) 20 7.8 (3.1)  6.2 (3.1)
Linear 6 8.4 (4.6) 9.3 (4.4) 6 7.7 (4.5) 7.0 (3.3)
29 29

Table 3. Comparison of Anterior and Posterior disc height between spot, island and linear morphologies between those who have and have not had previous surgery.

Comparison of VP size between no surgery and previous surgery

On sagittal CT imaging, there is a significant difference in spot VP size between no surgery and previous surgery groups (p=0.05; no surgery mean=1.6, SD=0.2, previous surgery mean=1.1, SD=0.3). There is also a significant difference in linear VP size between no surgery and previous surgery groups (p=0.008; no surgery mean=15.6 SD=8.5, previous surgery mean=5.7, SD=2.0). No significant difference was found in island VP size between no surgery and previous surgery groups (p=0.49; no surgery mean=17.9, SD=8.4, previous surgery mean=16.3. SD=10.2).

Discussion

Chronic lower back pain is a common cause of disability and missed work. Over the past three decades, epidemiological studies have shown that it is the leading cause of years lived in the US with disability, and it is a tremendous economic burden on society. It affects up to 84% of the adult population. Lower back pain can stem from different etiologies including muscular, ligamentous, or neurologic pain, as well as the more difficult to diagnose discogenic or facetogenic pains [11]. Unless there are red flags such as fevers, chills, increased age, a cancer diagnosis, or focal neurologic symptoms, no imaging is recommended for lower back pain for at least 6 weeks. When conservative treatment has failed, or imaging is recommended, MRI is the imaging modality of choice. Neurologic symptoms may stem from causes such as disc herniations or spinal stenosis from Page 8/15 bony or ligamentous hypertrophy [12]. Once a clear radiographic finding correlating with symptoms is established, and all conservative measures including pain medications, physical therapy, and steroid injections have been exhausted, the patient may decide to pursue surgical options, such as a discectomy or spinal decompression surgery. At this point, surgeons often use CT imaging to better understand the bony anatomy to help them prepare for surgery. Traditionally, lateral flexion-extension radiographs are also utilized to determine if any anteriorposterior dynamic subluxation of adjacent vertebrae is present. If so, this may indicate vertebral instability and potentially necessitates the need for a spinal fusion with rods and screws or interbody devices in addition to spinal decompression (i.e. laminectomy) [13,14].

With lower back pain causing such a societal burden, it is important to continue to discover the nuances of spinal radiology and surgery in order to refine the diagnosis and treatment of lumbar spine disorders. Recently, there has been much interest in finding validated radiographic indexes or direct measures to better measure vertebral instability pre-operatively. Examples of this include using facet joint effusion on MRI to determine translational or rotational instability. Another potential method involves using the Quantitative Stability Index based on MRI facet- fluid and flexionextension radiographs. Still, even more potential methods exist, such as defining the Neutral Zone, which is the magnitude of residual displacement after loading and unloading a vertebral segment in a certain direction and waiting 30 seconds. In this same vein, we have looked at the presence of VP in the lumbar spine as a potential indicator of vertebral instability [1517].

VP was first reported within IVD’s by Magnusson in 1937. In 1942, Knuttson stated that VP was due to disc degeneration [18]. The gaseous make-up within the discs was analyzed and determined to be approximately 92% nitrogen, along with oxygen, carbon dioxide, and other trace gases [19]. 7,9 VP resurfaced in literature in the 1980’s and was thought to be caused by multiple etiologies including trauma, infection, malignancy, and degenerative changes, 4 but multiple studies have demonstrated that its presence is largely due to end stage degenerative changes. Its presence in literature has been increasing in recent years, and it may be more than simply an incidental and anecdotal finding [20].

Past studies have looked for a correlation between IVD VP presence and vertebral instability focused on surgical outcomes in patients with same segment spondylolisthesis and IVD VP presence. 8 They compared two different types of spondylolisthesis, isthmic and degenerative (IS) and (DS). While there was a larger presence of VP in IS patients compared to DS patients, the fusion rate post-operatively was also higher in IS patients. Therefore, this study concluded that IVD VP presence was not directly correlated with instability. In another study, surgical outcomes in same segment spondylolisthesis and VP. In their study, they treated patients surgically with posterolateral fusion either with or without the addition of an interbody device [21]. Less translation in the patients with interbody devices led them to conclude that VP presence at the same segment of spondylolisthesis, does indicate vertebral instability. These conflicting results led us to research if certain variables, such as size and shape, of VP may play a role in instability.

A 2018 classification system desiging by demonstrated that morphologic characteristics on sagittal CT and location on axial CT may be more closely associated with degenerative changes or disc height loss on MRI. This was the first time VP was classified on CT and may help radiologists determine the nuances of VP to gain a better understanding of when to mention VP in their readings. Morphology on CT images was separated into three categories: spot (less than 2 mm), island (greater than 2 mm), and linear. Larger island VP’s greater than 2 mm were significant indicators of decreased disc height. Bothm Island and linear VP’s werem significant indicators of high-grade degenerative disc changes on MRI. Due to the fact that most patients undergoing spine surgery have received CT imaging and lateral flexionextension x-rays for pre-operative surgical guidance, we decided to retrospectively look for the presence of VP on sagittal CT and use [3]. Morphologic component of the classification system of island (less than 2 mm), spot (greater than 2 mm), and linear morphologies to determine which morphology is correlated with increased dynamic subluxation or loss of disc height on lateral flexion extension x-rays [22]. Furthermore, we performed these analyses between patients who have and who have not had previous lumbar surgery.

We hypothesized that the larger sized island and linear VP’s would have larger amounts of subluxation and decreased ADH and PDH compared to the smaller spot VP’s. After performing a statistical analysis, we in fact,

did not find a significant difference in any of these parameters during a 3-way comparison of the morphologies. There may be multiple reasons for this finding. First, by strictly adhering to the categorical classification system, we did not separate within island or linear VP based on their size. For example, a 3 mm island VP was considered equal to a 20 mm island VP. A tiered classification distinguishing between smaller, medium, and larger sizes of island and linear VP may have provided more clarity. Second, while attempting to elucidate if one or two VP morphologies were more likely to cause vertebral instability, we compared the three VP groups to them instead of comparing each individual VP group against instability itself. In other words, studies have defined a subluxation of 2-4.5 mm as vertebral instability [23-25]. If the subluxation measurements of each group would have been compared to these parameters, they very well could have indicated instability. Our overall goal was to determine if certain morphologies were better at determining instability, though, we failed to prove this. Third, one may find a multitude of spine literature questioning the validity of dynamic flexion-extension xrays in determining vertebral instability [17,24-26]. We decided to use this radiographic option as it is still traditionally used by spine surgeons in determining instability pre-operatively, and these x-rays are usually available in the radiographic records of most patients with a history of a spine CT. Lastly, our study may have lacked sufficient power due to sample size. A larger retrospective study may have allowed the statistical analysis to reach significance when comparing between the three groups.

An interesting finding from this study is that there was a significant difference between the VP size of spot and linear morphology between patients who had never had lumbar fusion surgery and those who had a lumbar fusion surgery. This is further evidence that VP is associated with degenerative changes because decompressive surgery decreased the size of VP. Furthermore, fusion and the improvement in segmental stability leading to a decreased VP size may indicate a correlation between VP size and Page 10/15 instability. Island VP size was not significantly decreased following fusion, and this may, again, be due to the wide spectrum of sizes assigned to the island classification under this CT classification system. Further dissection between small, medium, and large sized circular-shaped VP may provide a more helpful classification system when determining vertebral instability.

Another interesting finding from this study was that there was a significant difference between ADH and PDH on flexion and extension island VP x-rays, and extension linear x-rays, while there was no difference between ADH and PDH on any spot x-rays. This may suggest that increased VP size may lead to less uniform discs, again making the case for VP and disc degeneration and potential instability. Further studies on this subject with the addition of MRI grading of disc degeneration is recommended.

Limitations to our study include the lack of a validated gold-standard metric for determining vertebral instability. This may limit the generalizability of our study, but it does not limit the within-study comparative studies. Furthermore, measurements were taken by individuals of different levels of training (2 medical students, 1 orthopedic surgery resident, and 1 neuroradiologist) and intra- and inter-observer reliability were not statistically analyzed. Although, intra-and inter- observer reliability were found to have sufficient kappa values in the study with two orthopedic surgeons. Our study only analyzed 1 part of the 2-part Murata classification system by looking strictly at VP size and morphology and neglecting the location within the IVD on axial CT images. This limited our CT readings to a 2-dimensional analysis, whereas the classification system was 3-dimensional. This was done intentionally as we hoped to focus on one aspect of the classification system in determining its utility, and to potentially see how it may be improved upon. Another consideration that would allow future studies to expand on our research is to factor in the surgical outcomes and studies mentioned earlier did. This may factor in possible confounding variables that may be present in our study. For instance, the study determined that not only did IS patients have more VP, but that they had less dynamic subluxation and higher fusion rates than DS patients. This may be due to IS and DS resulting from different mechanisms. Our study also did not factor in the age, sex, or comorbid conditions of the patients. Lastly, as mentioned previously, our statistics may have been affected by a lack of power due to insufficient sample size. Still, this retrospective study provided a follow-up to the CT classification paper, and our data highlights potential improvements that may be made to the morphologic portion of the system.

Conclusion

Given the finding of no differences in morphology by group, we suggest that fine-tuning of this portion of the classification system may improve its diagnostic and prognostic abilities. Also, the significant difference observed between anterior and posterior disc heights on flexion-extension x-rays for island and linear VPs suggests that larger VPs may indicate degenerative changes and potential instability in agreement with recent VP literature. We recommend further research into the development of an all-encompassing CT classification system for IVD VP
