Research Article - (2022) Volume 6, Issue 1
Received: 07-Jan-2022, Manuscript No. jma-22-51356;
Editor assigned: 05-Jan-2022, Pre QC No. P-51356; ;
Reviewed: 03-Jan-2022, QC No. Q-51356;;
Revised: 22-Jan-2022, Manuscript No. R-51356;;
, DOI: 10.4265/jma.2022.6.220
Citation: Dumitrescu, Ana-Maria, Claudia Florida Costea, Roxana Gabriela Cobzaru, Carmen Valentina Rîp?, et al. “Anatomical Variants of the Posterior Part of the Circle of Willis in Patients with Cerebrovascular Diseases.” J Morphol Anat 6(2022): 220.
Copyright: © 2022 Claudia Florida Costea, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Introduction: The current literature proves that the frequency of anatomical variants of circle of Willis (CoW) has not yet been sufficiently evaluated both in the Romanian population and internationally, and in the North East region of Romania there is no evidence of such research so far. The aim of this study is to identify the frequency and types of anatomical variants of the constituent arteries of the posterior part of the CoW in patients with cerebrovascular diseases diagnosed within the main Neurology hospital in the Northeastern region of Romania, based on macroscopic analysis of arterial specimens obtained at autopsy and to compare the results with data from updated literature.
Material and Methods: Our research represents a descriptive observational study, conducted retrospectively on 96 patients with cerebrovascular diseases who died over a period of 30 months and underwent an anatomo-clinical autopsy. We analysed the general macroscopic aspects of all anatomical variants of the constituent arteries of the posterior part of the CoW, comparing these to the opposite arteries.
Result: Out of the total of 96 available human brains, 28 cases (29.17%) presented anatomical variants of CoW, among which 11 cases (39.28%) presented at least one anatomical variant of the constitutive arteries of its posterior part. The average age of these patients was 59.18 years. 36.36% cases had a single anatomical variant, 54.54% cases had two anatomical variants, and 9.09% all of cases associated an anatomical variant of the posterior part of CoW and one of the vertebral arteries. Anatomical variations of the arteries of the posterior part of the CoW were observed in 14 arteries (31.81%) of all the 44 available, and consisted in unilateral or bilateral hypoplasia (20.45%) or absence (15.90%), located either on the right or on the left, and partial fetal posterior communicating artery (2.27%) located on the left side. We identified seven morphological patterns of the posterior part of CoW in the conditions in which its anterior part does not present any anatomical variants.
Conclusion: The data obtained in the present research allow us to affirm that circle of Willis represents an anatomical structure with a great morphological diversity of its posterior part. This study contributes to the knowledge of this topic in Romania and allows comparisons with data obtained both in the country and abroad.
Cerebrovascular disease • Circle of Willis • Anatomical variants • Arterial hypoplasia • Fetal artery
The circle of Willis (CoW), also called the arterial circle of Willis or circulus arteriosus cerebri, was originally defined by the English anatomist Thomas Willis (1621–1675), who first described it completely and correctly in 1664 in his book Cerebri Anatome: cui accessit nervorum descriptio et usus , as an arterial anastomotic structure that has a complete symmetry in its shape and configuration .
The normal CoW is defined as a closed circuit in which blood can flow from the point of entry to its return to that point through the component vessels, maintaining adequate flow without additional vessels, but the constituent arteries must not be smaller than 1 mm in their outer diameter . Normally, CoW has seven sides, thus being a heptagon-like shape . It can be divided topographically into an anterior part and a posterior part. The anterior part consists of three vascular components, namely: the pre- communicating segments (A1) of the two Anterior Cerebral Arteries (ACAs), right and left, which are interconnected through the Anterior Communicating Artery (AComA); the posterior part consists of four vascular components, namely: the pre communicating segments (P1) of the two Posterior Cerebral Arteries (PCAs), right and left, and the two Posterior Communicating Arteries (PComAs), right and left. The Posterior Cerebral Artery (PCA) is a terminal branch of the Basilar Artery (BA). It provides blood mainly to the occipital lobe, the infero-medial surface of the temporal lobe, the mesencephalon, the thalamus, and the choroid plexus of the third ventricle and lateral ventricles. In the CoW, the Posterior Cerebral Artery (PCA) anastomoses laterally on each side with the ipsilateral Posterior Communicating Artery (PComA), thus establishing a connection between the vertebrobasilar system and the internal carotid artery system.
The importance of a symmetrical CoW is twofold. First of all, this arterial structure is essential for maintaining a stable and constant blood flow to the brain as the nerve tissue is very sensitive to the lack of oxygen and of blood nutrients. It can be considered that it has compensatory capacity, depending on the presence of all its arteries and their normal diameter.
The proximal segment (A1) of the Anterior Cerebral Artery (ACA) can provide blood flow to the cerebral hemispheres normally supplied by the contralateral Internal Carotid Artery (ICA) if the Anterior Communicating Artery (AComA) is patent, and the Basilar Artery (BA) can provide collateral flow to the anterior circulation through the proximal segment (P1) of the PCA by reversing blood flow through the PComA .
Under conditions of symmetrical CoW, even in patients with stenosis or severe occlusion of the ICA, blood may redistribute to ischemic areas to improve cerebral perfusion, preventing the onset of ischemic events and their progression. On the other hand, any change in the morphology of the constituent arteries can lead to various vascular failure syndromes because the ability of CoW to redistribute blood flow inside the brain depends on the morphology condition of its vessels. Patients who suffer from ICA occlusion, but who have a CoW with efficient collateral circulation have a lower risk of stroke than those who do not have such collaterals .
Recent literature reports many variations of CoW from its original definition. Studies conducted so far, be it on autopsy cases or on imaging investigations, showed that a normal CoW occurred in only 16.6% to 42.8% of the population [5-7].i.e. less half of the cases.
Several studies have also shown that these anatomical variants of CoW have an important role in the development of cerebrovascular disease (ischemic and haemorrhagic stroke), which is one of the most common pathologies, but also of psychiatric disorders [8-10].
As the frequency of anatomical variants of CoW has not yet been sufficiently evaluated in the Romanian population, and in the Northeastern region of the country there is no such research so far, the aim of this study was to identify the frequency and type of anatomical variants of the constituent arteries of the posterior part of the CoW in patients with cerebrovascular disease diagnosed in a regional hospital based on macroscopic analysis of CoW specimens obtained at autopsy and comparing the results with data from the literature up to date.
Our research is a descriptive observational study, conducted retrospectively on hospitalized cases, by assuming the principles of institutional ethics. The study was performed within the Pathology Department of ”Prof. Dr. N. Oblu” Emergency Clinical Hospital, Iași, Romania, mentioning the fact that it is the main neurological and neurosurgical medical unit in the Northeastern region of Romania.
The population included in this study consisted of 96 neurological and neurosurgical patients who died of various medical causes in this hospital, in a period of 30 months (01.01.2014-30.06.2016), who underwent an anatomo- clinical autopsy at the request of the attending physician to establish the diagnosis of death. The identification data of each autopsied deceased (gender and age), as well as the macroscopic morphological aspects of the CoW and of its constituent arteries were taken from the Autopsy Register of the Pathology Department within the same hospital.
Selection of samples
We included in the present study only those circles of Willis with anatomical variants of the posterior part, respectively of the proximal segments P1 of the PCAs and of the PComAs.
Macroscopic examination of the Willis polygon
During autopsies, the pathologist performed a detailed morphological and morphometric analysis of each CoW. The constituent arteries of all circles of Willis were observed, as well as the basilar artery (BA) and Vertebral Arteries (VAs), noting any variation in the morphology of each vessel, as well as their point of emergence compared to their pair vessel. Thus, the general macroscopic aspects of the all analysed circles of Willis were recorded, noting anatomical variants of any of the constituent arteries of the posterior part, namely: absence, hypoplasia, duplication, fenestration, difference in length and difference in origin and place of discharge, compared to the opposite segments.
The CoW morphology was analyzed related to the follow- ing definitions:
A CoW was considered typical if all the component arteries (the pre- communicating segments of the ACAs, both PCAs, AComA and both PComAs were present, when these arteries did not showed any anomaly, when the origin of all vessels contributing to the formation of CoW had the typical origin, and when their outer diameter was no less than 1 mm . The remaining specimens that were different from the above description were considered as ‘’anatomical variants“ “or as an incomplete CoW” [11-12]. The absence of an artery has been defined either as its absence or as its replacement by a very thin, without a patent lumen fibrous cord .The hypoplasia of the P1 segment of the PCA was defined by an outer diameter of the vessel less than 1 mm, but with a patent lumen [13-14].Because normal PComA has an outer diameter of 1,0-1,5 mm, regardless of its origin, PComA hypoplasia was defined by an outer diameter of less than 0,5 mm, but with a patent lumen[14-18].We defined the fetal posterior communicating artery as an artery with its origin completely from the ICA, with no connection to the BA or when it retains only a hypoplastic connection with the BA , and the diameter of the P1 segment of the PCA is smaller than that of PComA . The anomalies of origin describe the situations in which an artery has a different origin from the classical one.
Photographing of available specimens
The photographs of circles of Willis with anatomical variants of their posterior part were taken from the digital archive of the Department of Pathology, where they were stored from the moment they were performed, i.e. during autopsies realized at the request of the clinician to establish, confirm or complete the diagnosis of death. At that time, the pathologist numbered and analysed circles of Willis and photographed them with a digital camera. The photographs of the circles of Willis we used in the present research were numbered and archived in the archive of our study.
The results were collected in a database using Excel and then tabulated. The obtained data were used to calculate the mean, number and percentage, as well as the corresponding graphs. In the end, the obtained data were sorted according to the type of morphological variation of the component arteries of the posterior part of the CoW and were compared with the data from the literature.

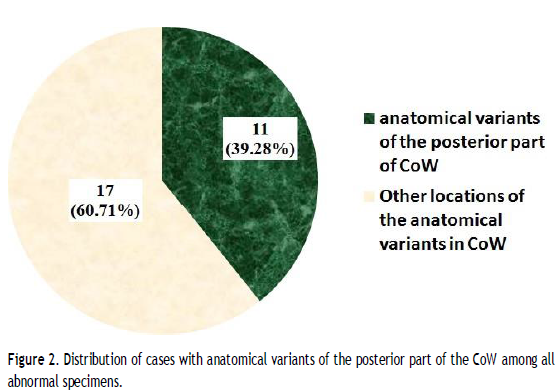

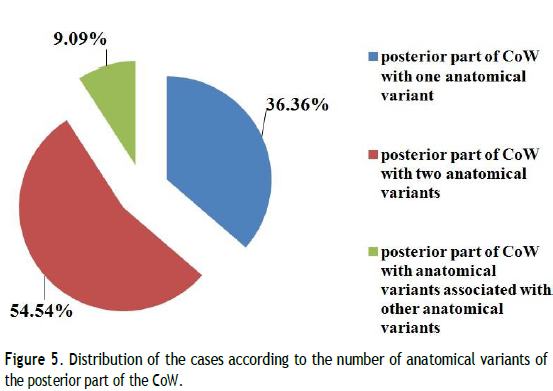

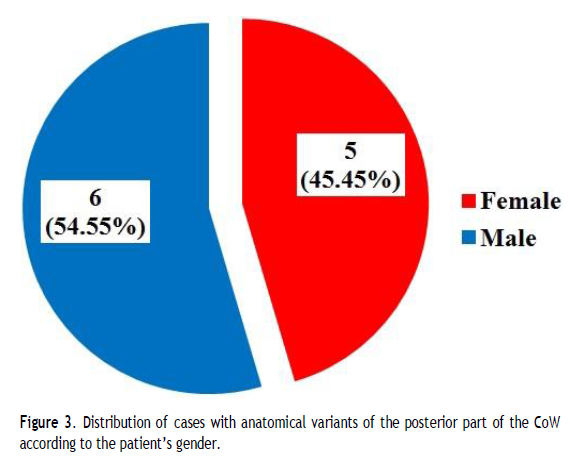

Out of the total of 96 available human brains, 68 cases (70.83%) presented the classical form of CoW, i.e., the complete and symmetrical form. The remaining 28 cases (29.17%) were classified as “incomplete” because they presented anatomical variants of the constitutive arteries (Figure 1 and Table 1). Of these 28 cases with an “incomplete” CoW, 11 cases (representing 11.45% of all 96 CoW we analyzed and 39.28% of all incomplete circles of Willis we included in this study) presented at least one anatomical variant of the arteries of the posterior part of CoW (Figure 2). Of the 11 patients who died with the average age of the whole group was 59.18 years, with a variation between 40 years and 86 years. Female cases ranged in age from 41 to 86 years, with a mean age of 60.8 years, and male cases ranged from 40 to 76 years, with a mean age of 57.83 years. The distribution of analysed cases according to age groups shows a peak in the 5th and 6th decades of life (Figure 3). For female patients there is a peak in the age group of 50-59 years, and for male patients there are two peaks, one in the fifth decade of life and another in the seventh decade of life. In the present study, out of the 11 CoW we have analysed, 4 (36.36%) cases had a single anatomical variant of the posterior part of the CoW, 6 (54.54%) cases had two anatomical variants, and one case (9.09%) associated an anatomical variant of the posterior part of CoW and an anatomical variant of one of the VAs (Figure 4). Anatomical variants of the posterior part of the CoW, 6 (54.54%) were male and 5 (45.45%) were female (Figure 5), so that the M: F ratio was 1: 1.2. When we analysed the distribution of cases according to the affected side and to the type of the anatomical variant, we took into account all 44 arteries from our 11 cases. We identified anatomical variants on the right side in 9 arteries (20.45%) and on the left side in only 8 arteries (18.18%) of all the 44 available arteries (Figure 6). Anatomical variations of the constituent arteries of the posterior part of the CoW were observed in 14 arteries (31.81%) of all the 44 available and consisted of hypoplasia (9/44 arteries; 20.45%) or absence (7/44 arteries; 15.90%), located either on the right or on the left, and partial fetal PComA (1/44 arteries; 2.27%), located on the left side (Figure 7). The hypoplasia of PComA was identified in 7/11 cases of CoW (63.63%), either unilaterally (2/11 cases; 18.18%) (Figure 8) or bilaterally (2/11 cases; 18.18%) (Figures 9 and 10). or associated with the absence of the contralateral artery (2/11 cases; 18.18%). In 1/11 case (9.09%), PComA hypoplasia was associated with a variant outside of CoW, respectively with hypoplasia of the left VA (Figures 8 and 12). The absence of PComA was unilateral in 1/11 cases (9.09%), bilateral in 2/11 cases (18.18%) (Figures 8 and 11). And associated with hypoplasia of controlateral artery in 2/11 cases (18.18%). Fetal PCA was identified in only one case (9.09%), being located on the left side of the CoW (Figures 8 and 12).
In the present research we identified seven morphological patterns of the posterior part of CoW in the conditions in which its anterior part does not present any anatomical variants (Figure 13).
+/- other anatomical variants
|1||M||40||-||Absence of left PComA
Absence of right PComA
|2||F||41||-||Absence of right PcomA
Asymmetry of CoW due to different anastomosis points of right PComA compared with left PComA
|3||M||49||-||Hypoplasia of right PComA|
|4||M||50||-||Absence of right PComA
hypoplasia of left PComA
|5||F||52||-||Hypoplasia of left PComA
hypoplasia of left vertebral artery (AV)
|6||F||54||-||Absence of right PComA,
absence of left PComA
|7||M||65||-||Hypoplasia of right PComA
Asymmetry of CoW due to different point of anastomosis between PcomA and PCA: on the right, this point is closer to the bifurcation of the basilar artery compared to the opposite side
|8||M||67||-||Hypoplasia of the left PComA
Hypoplasia of the right PComA
|9||F||71||-||Hypoplasia of the left PComA
Hypoplasia of the right PComA
|10||M||76||-||Hypoplasia of the left PComA
Absence of the right PComA
Asymmetry of CoW due to different anastomosis points between right PComA and left PComA
|11||F||86||Left partial fetal PCA is anastomosed through a thin arterial branch with the basilar artery (BA)||-|

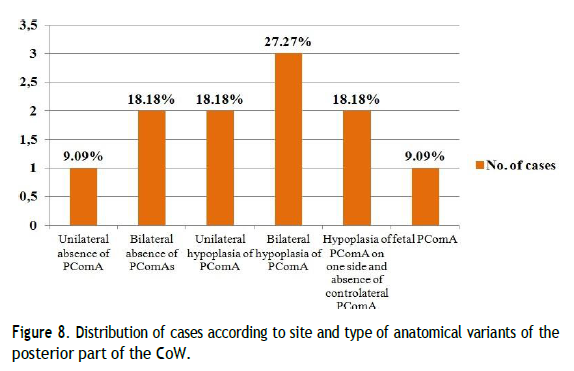

These patterns are:
1. Unilateral absence of PComA
2. Bilateral absence of PComA
3. Unilateral hypoplasia of PComA
4. Bilateral hypoplasia of PComAs
5. Absence of PComP on one side and hypoplasia of PComA on the opposite side
6. Unilateral fetal PComA
7. Unilateral hypo plastic PComA associated with ipsilateral hypo plastic vertebral artery.
The termination of the PComA was of type I or typical in all 11 cases (100%) because each PComA ended through an anastomosis with PCA that divides it into the P1 segment and the P2 segment. The symmetry of the anastomosis points between PcomA and PCA was identified in 7 cases (63.63%), and in the other 4 cases (36.36%) these points were asymmetric, as they varied between the two parts, right and left. Hartkamp et al. (31) developed a.
The anatomical variants we have identified on the posterior part of the CoW result either from the persistence of the vessels which should normally disappeared during embryonic development or from the absence of certain vessels which should have been present at birth . A good knowledge of the anatomical variants of the posterior part of the CoW becomes very important in the surgery of pituitary tumors and aneurysms of the basilar artery because its constituent arteries send a series of perforating arteries in the diencephalon and mesencephalon that can be affected by stretching . The presence of efficient PComAs is a vital factor for stroke development, as these vessels link the anterior and posterior cerebral circulation, providing a strong source of plasticity in cerebral hemodynamics . Gunnal SA, et al. . performed an autopsy study on 170 brains preserved in formalin from people Indian ancestry. These authors identified anatomical variations of PComA in almost half of their cases, these variations being: hypoplasia (25.9%), fetal artery (16.47%), absence (3.52%) and fenestration (0.58%) In contrast to this study, our research identified only hypoplasia, absence and fetal artery as anatomical variants of the posterior part of CoW, but the difference may be correlated to the smaller number of cases we analyzed in our study. The similarity between our study and that of Gunnal SA, et al.  consists in the predominance of hypoplasia among the anatomical variants of the posterior part of CoW. However, the absence of PComA ranks secondly, and was followed by the fetal artery, which was only rarely identified. The differences between these two studies consists of the selected population. Our data are not very different from those recently obtained by Kornieieva M, et al. , who analyzed the morphological variability of CoW on specimens obtained by anatomical dissection from corpses of Caucasian ancestry and on specimens belonging to living persons, but of Arab ancestry, which they analyzed by angio-MRI . These authors reported that a complete, typical CoW was identified in only 8.3% of autopsied Caucasians and 22.2% of angio-MRI specimens belonging to Arab patients. They also found that the most common variant of the posterior part of the CoW in Caucasian specimens was unilateral fetal PComA, which were recorded in more than a third of cases, followed by unilateral hypoplasia of the posterior communicating artery (PComA). In samples from Arab patients, obtained by angio-MRI, the posterior part of the CoW was incomplete in 26.56% of cases because the PComA was absent or unilaterally hypoplastic in a quarter of all incomplete CoW or bilateral hypoplastic in one-fifth of all incomplete CoW Unilateral fetal PComA, was registered in 18.7% of incomplete CoW . Our study is similar to this study and to many other reports, because hypoplasia and/or absence of PComA is the most common anatomical variant of the posterior part of the CoW (Table 2), in second place being unilateral fetal PComA. Eftekhar B, et al. , who studied 102 human brains from Iranian individuals, reported that more than 58% of them had a complete CoW, 11% had hypoplasia of posterior communicating artery, and 27% of cases showed fetal posterior communicating arteries thus highlighting the predominance of the fetal model in this Iranian series. In our study, we identified only one case of left partial fatal PCA, anastomosed through a thin arterial branch with the basilar artery, that accounted for one tenth of all incomplete CoW from our series, but the number of available cases was very small, thus representing one of the limitations of our study. Variants of the P1 segment of the PCA are very rare and our study did not detect any of them. In 1991, Caruso G, et al. , analyzing a series of 100 formalin-fixed human brains, reported only 3% abnormalities at this level, represented by a case of duplication of this segment, a case of fenestration and the third case was a common trunk of the PCA and the superior cerebellar artery, which is also a rare variant. However, in the literature, many articles reported uni- or bilateral hypoplasia as the most common anatomical variant of the posterior cerebral artery (PCA), which has a frequency ranging from 14.5% to 48.3% [20,22,24-28].
|Country/author||Absent/hypoplastic PComA||Unilateral fetal PCA||Bilateral fetal PCA|
Hartkamp MJ, et al.  developed a classification of the morphology of the posterior part of CoW on a group of 75 Dutch patients with minor neurological deficits according to the anatomical variants encountered at this level. They identified 10 morphological patterns, among which bilateral fetal PComA associated with hypoplasia or the absence of both segments P1 was found in 63% of all cases they analyzed by angio- MRI. In second place was unilateral fetal PComA, observed in 27% of all cases. Unilateral hypoplasia of PComA was identified in only 1% of cases, and bilateral hypoplasia or absences of PComA were not identified. In the present research, we identified seven morphological patterns of the posterior part of CoW in the conditions in which the anterior part does not present any anatomical variants, but these models are distributed evenly, in similar proportions, the only rarer ones being unilateral absence of PComA as well as unilateral fetal PComA, each of them being identified in about a tenth of cases showing their posterior part affected by anatomical variants.
However, there are significant differences between our study and the Dutch study because we found only one case of the fetal-type PComA compared to the predominance of this type in the study of Hartkamp et al. , but we must take into account the type of study conducted by each of us.
Of all ten types of anatomical models of the posterior part of CoW introduced in the literature by Hartkamp MJ, et al. , in the study realized by Hafez KA, et al. , the most common type was the one in which one of the two PComAs is absent (41.7%). On the second place it was the anatomical model with a fetal posterior communicating artery on one side (36%). Finally, on the third place it was the anatomical model characterized by the presence of both PComAs of hypoplastic type (25.3%). These morphological patterns were also identified in our study, with the difference that the anatomical model characterized by the presence of fetal PComA was ranked third in our series.
Patients from our autopsy study had predominantly bilateral hypoplasia or absence of PComAs, but in the Egyptian study , performed on angio- MRI from healthy individuals, unilateral hypoplasia or absence of PComA predominated. At the same time, in their autopsy study they identified the predominance of fetal PComA. However, there are similarities between our series and the series of these Egyptian authors because hypoplasia and the absence of the PComA rank first. In 2011, another Egyptian study  analyzed anatomical variants of CoW also on angio- MRI, both by age (less than 40 years and more than 40 years), and by gender, but the individuals were healthy subjects because the authors excluded patients with cerebrovascular disease These authors used the classification of Hartkamp MJ, et al. , and reported that the most common anatomical variant was the “H” configuration (38.3% of cases), characterized by unilateral fetal PComA associated with unilateral hypoplasia or absence of both pre-communicating segments (P1) of PCA and the absence of contralateral PComA, but we must keep in mind that these individuals were healthy people. The majority of studies published until present on CoW specimens obtained from autopsy or angio- imaging techniques, in Asia or Europe, have shown that hypoplasia is the most common anatomical variation of the posterior part of CoW [6,11,12] and this morphological feature was also obtain by us on the first rank (Table 2).
The significance of this finding is that hypoplasia of PComA is considered a predisposing factor for hemispheric infarctions due to slow-flowing blood in ICA occlusions [32,33] It may be asymptomatic unless ipsilateral ICA stenosis occurs [4,34,35].
Chuang YM, et al.  even stated that hypoplastic PComA remains a risk factor for ischemic stroke even without being accompanied by stenosis of ICA In 2020, Jones JD, et al.  performed a meta-analysis of studies that analyzed the anatomical variations of CoW. They found that the presence of at least one anatomical variant was reported in various proportions, ranging from 42.2% to 95.2%, but this percentage varied depended on several factors, especially the analyzed population, respectively whether it represent healthy subjects or patients with cerebrovascular disease, and if the study was performed on corpses or living people using angio-CT or angio-MRI techniques. In addition, the reported prevalence of unilateral hypoplasia and absence of PComA (taken together) ranged from 8% to 28.7% in the literature, and the reported prevalence of bilateral hypoplasia and absence of PComA ranged from 3.7% to 47.5%. It is clear from the literature that anatomical variations of CoW are very common (68.22% ± 14.32).
Clinically, hypoplasia and the absence of PComA are very significant. PComA is essential for connecting the anterior and posterior halves of CoW. A hypoplastic or absent PComA may compromise the ability of CoW to provide collateral circulation. In the present study, bilateral hypoplasia/absence of PComAs was shown to be as common as unilateral hypoplasia of the same vessel, which means that the two halves of CoW could be anatomically and functionally isolated from each other without communication between the internal carotid system and the vertebrobasilar system. In the case of a stenosis of ICA, cerebral circulation can be based on the collateral supply of blood from the vertebrobasilar system. Without an efficient functioning of the PComA, the collateral circulation path may be compromised and an ischemic stroke can develop . Chuang YM, et al.  point out that a hypoplastic PComA is associated with an increased risk of stroke, especially in the thalamic region Mukherjee D, et al.  suggested that the presence of anatomical variants at the level of CoW may have an impact on the trajectory of microemboli and therefore may lead to infarcts in distal, more unusual areas of the brain. Patients with bilateral para-median thalamic lesions with no lesions other than in the thalamus were more likely to have hypoplastic P1 segments of PCAs or unilateral or bilateral absences of PComAs. However, there are large discrepancies of reporting the prevalence of anatomical variants of the posterior part of CoW, probably due to differences in methodology and nomenclature [20,22,25,29,31]. In addition, there are probably population differences in the anatomy of CoW [12,14,20,22,28,40,41] as many studies, conducted on five continents, differences from one ethnic group to another.
The data obtained in the present research allow us to affirm that circle of Willis is an anatomical structure with a great morphological diversity. Given that there are currently no data on anatomical variations in the cerebral circulation of the population living in the North-eastern region of Romania, this study contribute to the knowledge of this topic in Romania and allows comparisons with data obtained both in the country and abroad. This study offers the possibility to evaluate the angio architecture of circle of Willis in different groups of patients (with or without cerebrovascular pathology) or healthy subjects, from our country or from other countries as well.
All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards. Informed consent was obtained from all individual participants included in the study.
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
