Radiosugery with CyberKnife in Primary Orbital MALT Lymphoma: A Case Report

Keywords

CyberKnife • Radiosurgery • ND4 • Mucosa-associated lymphoid tissue lymphoma • Ocular adnexal lymphoma of MALT-type

Introduction

The concept of Mucosa-Associated Lymphoid Tissue (MALT) lymphoma first described by Isaacson et al. is now recognized as distinct clinicalpathological and molecular entity [1]. According World Health Organization (WHO) classifications, Marginal Zone Lymphoma (MZL) consists of three subtypes: Splenic MZL; Nodal MZL; and Extra-nodal MZL, also called MALT lymphoma [2]. MALT lymphoma accounts for 5-8% of all B-cell lymphomas [3] and constitutes one half of all orbital malignancies [4]. Ocular Adnexal Lymphoma of MALT-type (OAML) can affect conjunctiva, the retrobulbar soft tissue, the lachrymal gland, the eyelid and the lachrymal sac [5]. Although radiation therapy is the primary modality of treatment many issues remain unresolved due to the various types of ocular involvement, radiation techniques and side effects.

Case Presentation

A 76-year-old Caucasian female patient presented with pain in the right eye. Two years before the patient had the same symptoms. The computed tomography at that time detected lesion in the right retrobulbar space. Exicisional biopsy was performed and the pathological report was consistent with lipoma. At present the physical exam showed exophthalmos of the right eye. No enlarged lymph nodes and no significant findings on systemic examination were found. Routine blood investigations were within normal limits. Computed tomography of the head revealed a lesion in the right retrobulbar space. Excisional biopsy was performed and the immunophenotyping of the material showed phenotype CD20+, BCL2+, BCL6-, CD5-, CD3-, CD10-, cyclin D1-, and ki-67 proliferation index of 15%. In context with the microscopic appearance the final pathology report revealed the diagnosis of extranodal Marginal Zone Lymphoma (MZL/MALT). Further staging with chest, abdominal and pelvic computed tomography and bone marrow biopsy were done. No enlarged lymph nodes and no bone marrow involvement were found, which was consistent with a clinical stage IE. After discussion of her medical case, a multidisciplinary team decision was to start treatment with 4 cycles of high dose Dexamethasone plus anti-chlamidial antibiotic therapy. From January 2019 till April 2019 the patient was treated with 4 cycles of high dose Dexamethasone. The control CT of the head showed stable disease.

Radiosurgery with CyberKnife

The multidisciplinary team decision was radiosurgery with CyberKnife as a second line therapy because this therapy option has the capacity to minimize irradiation of nearby critical structures. Before starting the treatment an orbital Magnetic Resonance Imaging (MRI) of the right retrobulbar mass was performed (Figure 1). Patient head was immobilized with a thermoplastic mask before CT/MRI imaging fusion. The nearby critical structures (eyes, lens, lacrimal glands, optic nerves and optic chiasm) were contoured. The dose was prescribed such that 96.8% of the PTV received 100% of the prescribed dose of 20 Gy. The prescribed dose was delivered in 4 fractions, 5 Gy daily. The radiation used for radiosurgery was 6 MeV photons. There was no significant acute toxicity registered. The months after the radiosurgery with CyberKnife no exophthalmos was detected, and the control CT showed very good response to the treatment (Figure 2).

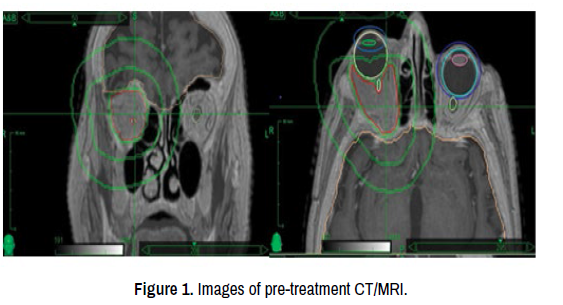

Figure 1. Images of pre-treatment CT/MRI.

Figure 2. Images of post-treatment CT.

Conclusion

As the rates the Ocular Adnexal MALT Lymphoma (OAML) are increasing nowadays a new effective and save therapeutic options are more than needed. Conventional local radiation therapy is the preferred therapeutic option with proven efficacy in the treatment of OAML. According to previous published data and the result of our case, treatment using radiosurgery with CyberKnife is an effective therapeutic modality with an acceptable toxicity profile.

References

1. Peter Isaacson and Dennis H. Wright. “Malignant Lymphoma of Mucosa-Associated Lymphoid Tissue: A Distinctive Type of B-Cell Lymphoma.” Cancer 52 (1983): 1410-1416.
2. Jaffe, Elaine. “The 2008 WHO Classification of Lymphomas: Implications for Clinical Practice and Translational Research.” Hematol Am Soc Hematol Educ Prog 10 (2009): 523-531.
3. Ian W. Flinn and Jesus G. Berdeja. “Blood and Bone Marrow Transplantation for Patients with Hodgkin’s and Non-Hodgkin’s Lymphoma.” Blood 89 (1997): 3909-3918.
4. Curtis E. Margo and Zuber D. Mulla. “Malignant Tumors of the Orbit: Analysis of the Florida Cancer Registry.” Ophthalmol 19 (1998): 835-846.
5. Keisuke Sasai and Hirohiko Yamabe. “Non-Hodgkin’s Lymphoma of the Ocular Adnexa.” Acta Oncol 40 (2001): 485-490.
6. Nancy L Harris and Judith A Ferry. “Ocular Adnexal Lymphoma: Clinical Behavior of Distinct World Health Organization Classification Subtypes.” Int J Radiat Oncol Biol Phys 57 (2003): 1382‑1391.
7. Gerardo F. Graue, Paul T. Finger, Elizabeth Maher and David Della Rocca, et al. “Ocular Adnexal Lymphoma Staging and Treatment: American Joint Committee on Cancer versus Ann Arbor.” Eur J Ophthalmol 23 (2013): 344‑355.
8. Jenkins, Chunghyun. “Histological Features of Ocular Adnexal Lymphoma (REAL Classification) and their Association with Patient Morbidity and Survival.” Br J Ophthalmol 84 (2000): 907‑913.
9. Andres J. Ferreri, Maurilio Ponzoni, Massimo Guidoboni and Antonia A. Lettini, et al. “Evidence for an Association between Chlamydia Psittaci and Ocular Adnexal Lymphoma.” J Natl Cancer Inst 96 (2004): 586-594.
10. Dandan Zhang, Lina Dong, Haiyan Li and Hasi Jin, et al. “Ocular Adnexal Mucosa-Associated Lymphoid Tissue Lymphoma in Northern China: High Frequency of Numerical Chromosomal Changes and No Evidence of an Association with Chlamydia Psittaci.” Leuk Lymphoma 51 (2010): 2031-2038.
11. Andrés J. M. Ferreri, Riccardo Dolcetti, Silvia Govi and Maurilio Ponzoni. “Ocular Adnexal MALT Lymphoma: An Intriguing Model for Antigen-Driven Lymphomagenesis and Microbial-Targeted Therapy.” Ann Oncol 19 (2007): 835-846.
12. Olga, Ésik. “A Retrospective Analysis of Different Modalities for Treatment of Primary Orbital Non-Hodgkin's Lymphomas.” Radiother Oncol 38 (1996): 13.
13. Piero, Galieni. “Localized Orbital Lymphoma.” Haematol 82 (1997): 436-439.
14. Melanie C. Smitt and Sarah S. Donaldson. “Radiotherapy is Successful Treatment for Orbital Lymphoma.” Int J Radiat Oncol Biol Phys 26 (1993): 59-66.
15. Masatoshi Hasegawa, Masaru Kojima, Mariko Shioya and Yoshio Tamaki, et al. “Treatment Results of Radiotherapy for Malignant Lymphoma of the Orbit and Histopathologic Review According to the WHO Classification.” Int J Radiat Oncol Biol Phys 57 (2003): 172-176.
16. Jayant S. Goda, Mary Gospodarowicz, Melania Pintilie and Woodrow Wells, et al. “Long-Term Outcome in Localized Extranodal Mucosaassociated Lymphoid Tissue Lymphomas Treated with Radiotherapy.” Cancer 116 (2010): 3815.
17. Maria Antonietta Blasi, Alessandra C. Tiberti, Paola Valente and Michela Laguardia, et al. “Intralesional Interferon-Alpha for Conjunctival Mucosa-Associated Lymphoid Tissue Lymphoma: Long-Term Results.” Ophthalmol 119 (2012): 494-450.
